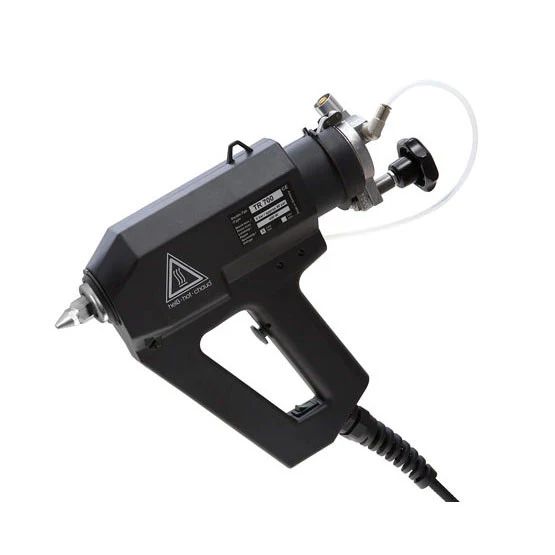

Reka TR 700 PUR Gun Overview

The Reka TR 700 is an incredibly unique adhesive glue gun allowing for effortless dispensing of polyurethane (PUR) adhesive cartridges. This gun extrudes PUR in bead form and uses air assisted pneumatic dispensing for precise dispensing in beads or lines.

The TR 700 PUR gun dispenses at 250 degrees F (120 C) and can be adjusted with a thermostat. PUR adhesives are dispensed from their metal cartridges and brought up to heat inside of the gun. A PUR preheater can be used to increase the output of the adhesive dispensing for high volume applications.

TR 700 PUR cartridges can be swapped effortlessly. The optional cartridge pre-heater warms up the glue prior to use and increases the potential glue produced per hour. The TR 700 is light in weight and features a stable design.

Optional Reka 2770 Gun Base

Choose to upgrade your Reka TR 700 to include a gun base with an air regulator. This industrial base provides stability to your workspace while remaining functional and easy-to-use. The pneumatic glue applicators from Reka can be quickly and safely parked on this stand. The integrated pressure gauge for the compressed air allows the adhesive output to be adjusted directly at the workstation.

Spec Sheet

Reka TR 700 Spec Sheet

Reka TR 700 Specifications

Weight: 3 lbs
Power Supply: 120 V
Temperature Control: Thermostat
Operating Temp: 250 F
Gun Type: Pneumatic

Nozzles for TR 700 - Download Spec Sheet Here

Part 1143: 1.9mm Nozzle
Part 3504: 1.5mm Nozzle
Part 3208: 1mm Nozzle
Part 3240: 1.5mm Nozzle
Part 3135: Threaded Cap
Part 3205: 1.9mm Nozzle
Part 3206 2.5mm Nozzle
Part 3207: 3mm Nozzle
Part 3502: 4mm Nozzle Insert
Part 3531: 5.5mm X 1.5mm Nozzle Insert
Part 3503: 4mm Nozzle Insert
Part 3509: 1.5mm Injection Needle
Part 3670: 1.5mm 2 Hole Nozzle
Part 3671: 1.5mm 3 Hole Nozzle
Part 3679: 1mm 5 Hole Nozzle
Part 3676: 3mm Extension Nozzle
Part 3677: 1.2mm Needle Jet
Part 3902: 1.75mm Pointed Nozzle
Part 3903: 1mm No 1 Nozzle
Part 3909: 1.75mm No 2 Nozzle
Part 3904: 2.5mm No 3 Nozzle
Part 3716: 18mm X .5mm Slit Nozzle
Part: 2741: 10mm X .5mm Slit Nozzle

Glue Guns & Adhesive Applicators

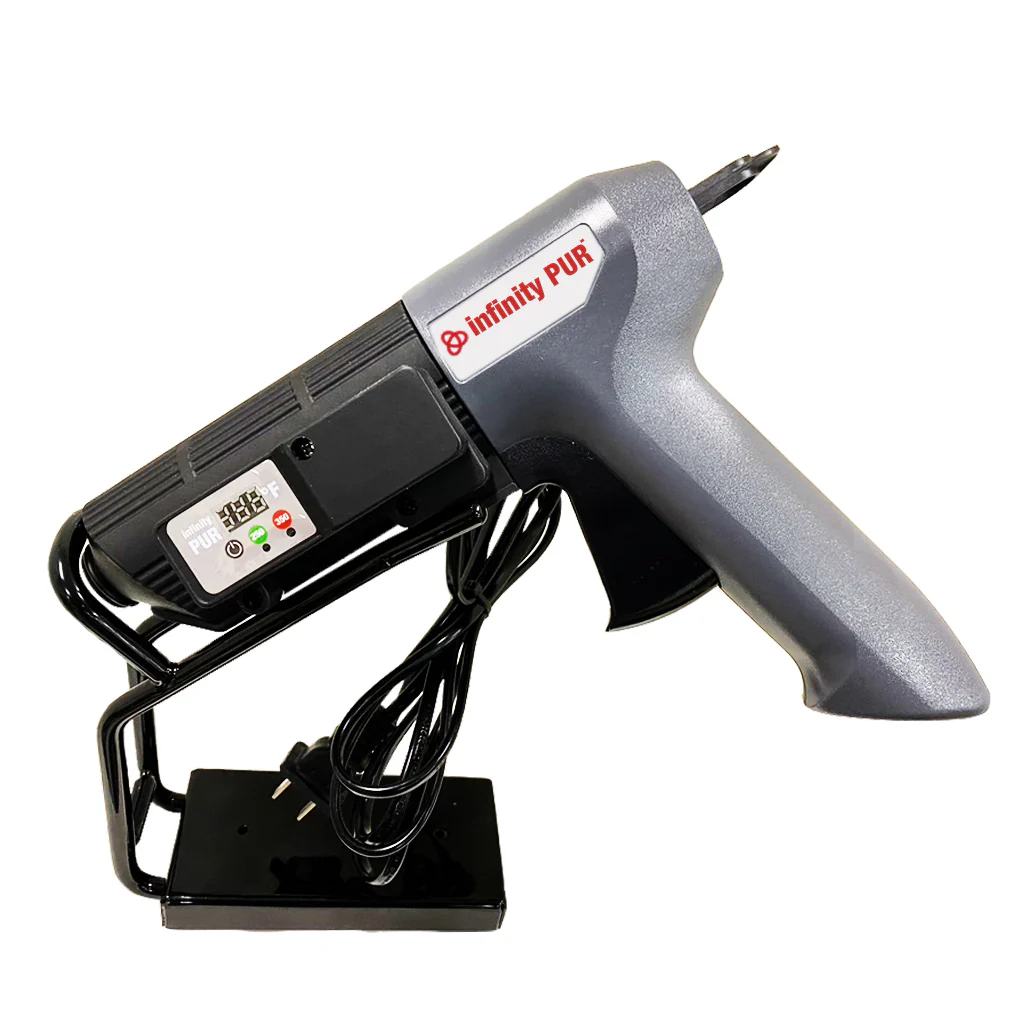

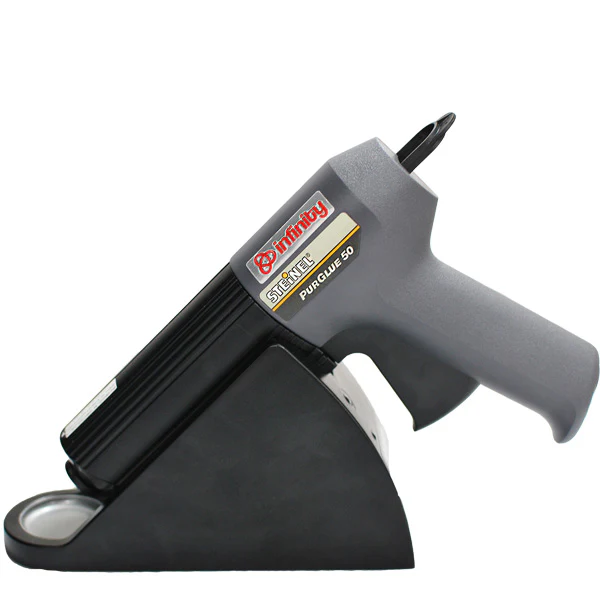

Infinity PUR 1361 Cordless Cartridge Glue Gun - HiPURformer Replacement

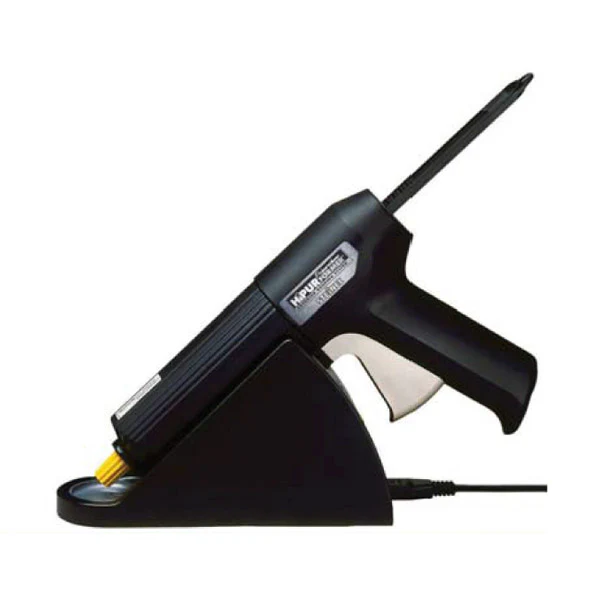

Titebond 1361 HiPURformer PUR Glue Gun

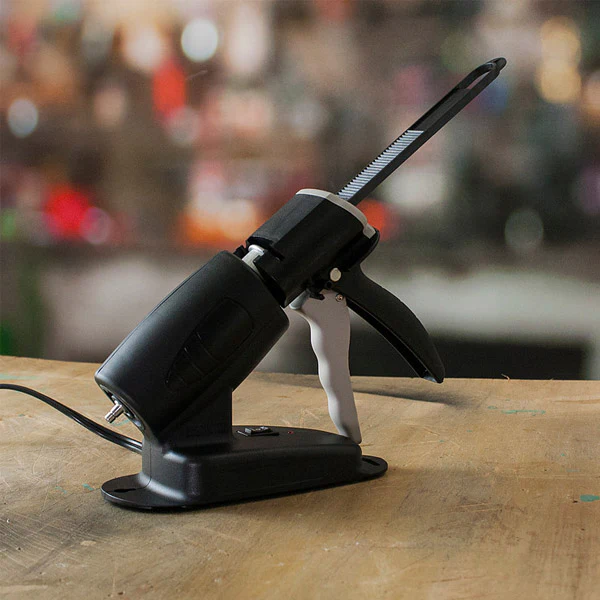

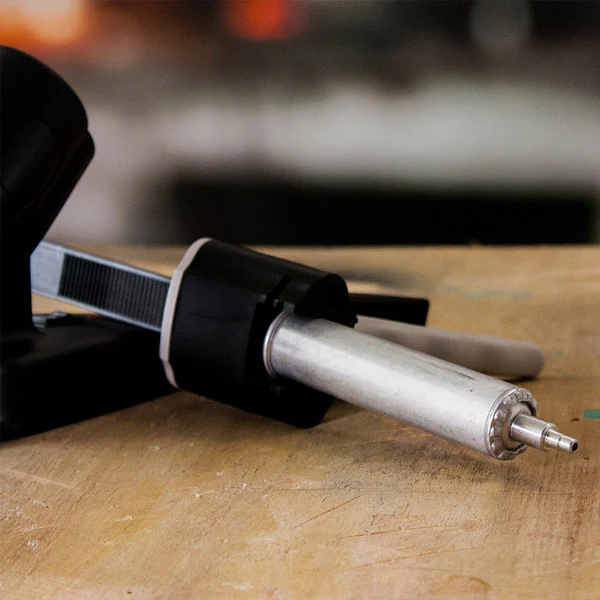

Surebonder PRO 100 Heated Cartridge Glue Gun

Reka TR 700 PUR Adhesive Cartridge Gun

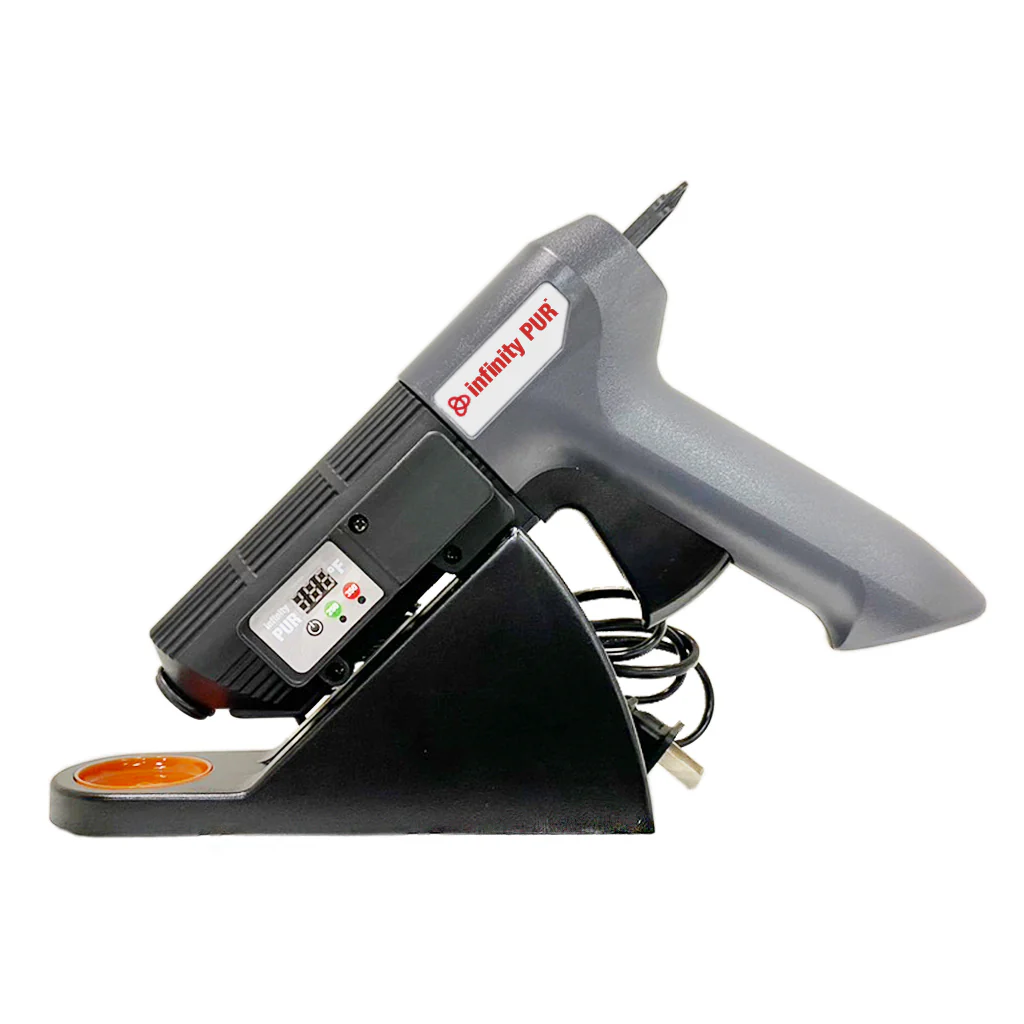

Infinity PUR 3000 Corded Cartridge Glue Gun

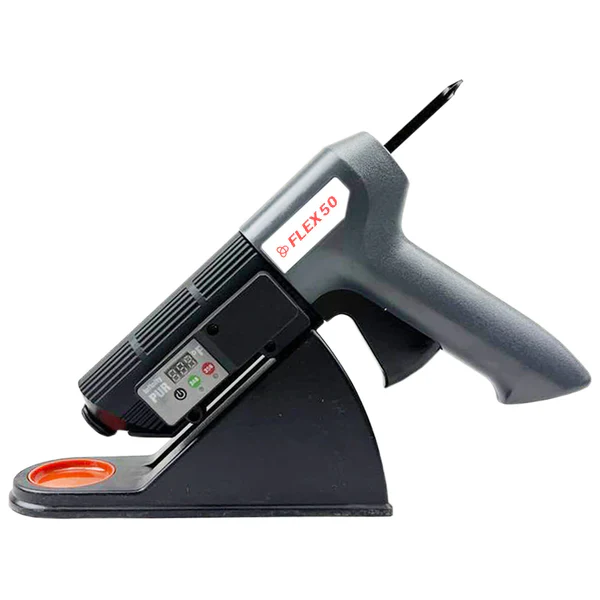

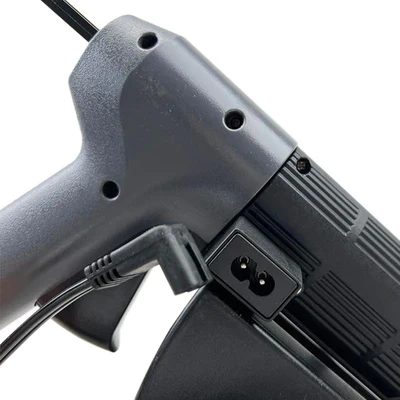

Infinity Bond Flex 50 PUR Hot Melt Applicator
