Buehnen HB 720 Bead Applicator with Air Service Unit

The Buehnen HB 720 Bead is a professional, pneumatic-assisted hot melt applicator designed for industrial manual applications. It features precise digital temperature control 104 - 410°F (40 - 210 °C), ensuring consistent adhesive performance across a wide range of substrates. Capable of processing granules (pellets), pillows, or 43 mm slugs, this versatile bead applicator is equipped with an integrated air service unit for reliable operation.

Optional configuration includes the HB 720 Tool Stand with integrated air service unit, offering a secure upright storage solution to reduce risk of drops or damage.

Buhnen HB 720 Bead Gluegun Key Features and Benefits

• Versatile Adhesive Compatibility: Processes granules, pillows, or 43 mm hot melt slugs.

• Digital Precision Control: Adjustable temperature range of 104 - 410°F (40 - 210 °C).

• Efficient Adhesive Monitoring: Integrated level control sensor displays adhesive volume remaining.

• Ergonomic Design: Lightweight 3 lb (1.35 kg) build with balanced grip reduces operator fatigue.

• Energy-Saving Function: Automatic temperature reduction helps conserve energy and protect adhesives.

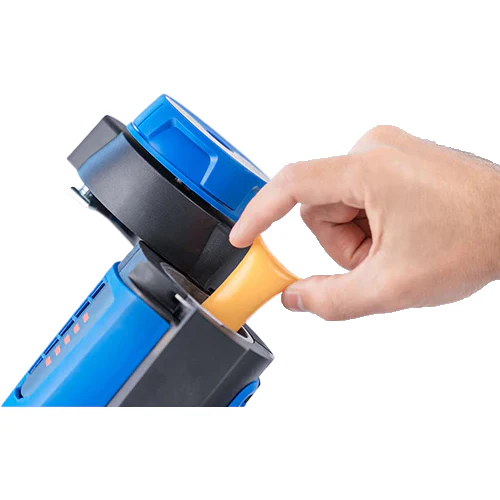

• User-Friendly Operation: One-hand bayonet lock for quick loading and secure closure.

• Integrated Air Service Unit: Provides regulated pneumatic support for smooth, effortless application.

• Tool Stand Option: Includes stable base stand with integrated air service unit.


Specifications

• Model: HB 720 Bead

• Type of Applicator: Pneumatic hot melt bead applicator

• Form of Adhesive: Granules, pillows, or 43 mm slugs

• Dimensions: 11.8" x 10.6" x 4.2" (300 x 270 x 107 mm)

• Weight: 3 lbs (1.35 kg)

• Voltage: 110V

• Power Consumption: 600W

• Operating Temperature: 40–210 °C (104–410 °F)

• Temperature Accuracy: ±1 °C

• Melt Tank Capacity: 200 ml (6.7 oz)

• Output:

  • Up to 7 lbs (3.2 kg) per hour with slugs

  • Up to 2.86 lbs (1.3 kg) per hour with granules

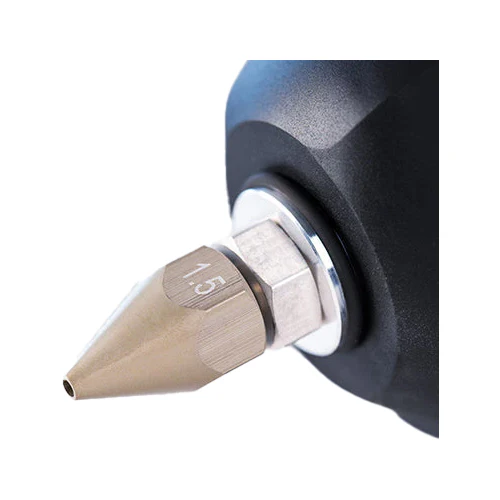

• Nozzle: Conical 1.5 mm bead nozzle (included standard)
• Replacement Model: Updated version of the Buehnen HB 710 Bead applicator
