Infinity Bond MAQ 05-16L Quadro Static Mixing Nozzle with Luer Lock Tip for A-System Cartridges

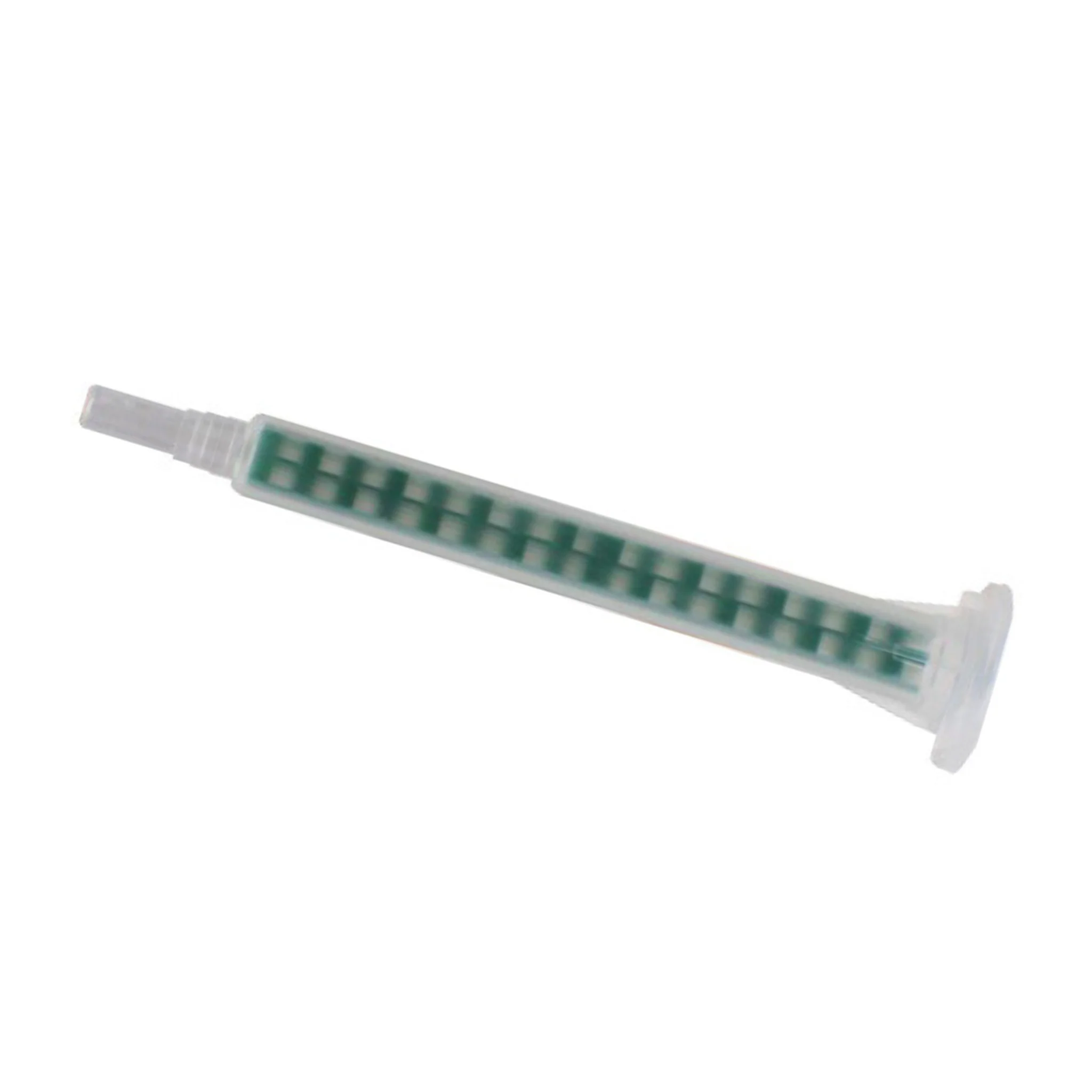

The Infinity Bond MAQ 05-16L quadro static mixing nozzle provides efficient, consistent blending of two-part adhesives in a compact form. It features 16 mixing elements with a 0.209 in (5.3 mm) inner diameter, an 84 mm length, and a luer lock outlet for attaching precision needles or specialty tips. Designed with a bayonet connection for use with 50 ml A-System cartridges, it supports 1:1 and 2:1 mix ratios and is ideal for methyl methacrylates (MMAs), epoxies, polyurethanes, and silicones. This model is a comparable alternative to other MAQ 05-16L style static mixing nozzles.

Benefits of the MAQ 05-16L Static Mixing Nozzle

• Quadro Mixing Design: 16 square elements ensure thorough and efficient blending of two-part adhesives.

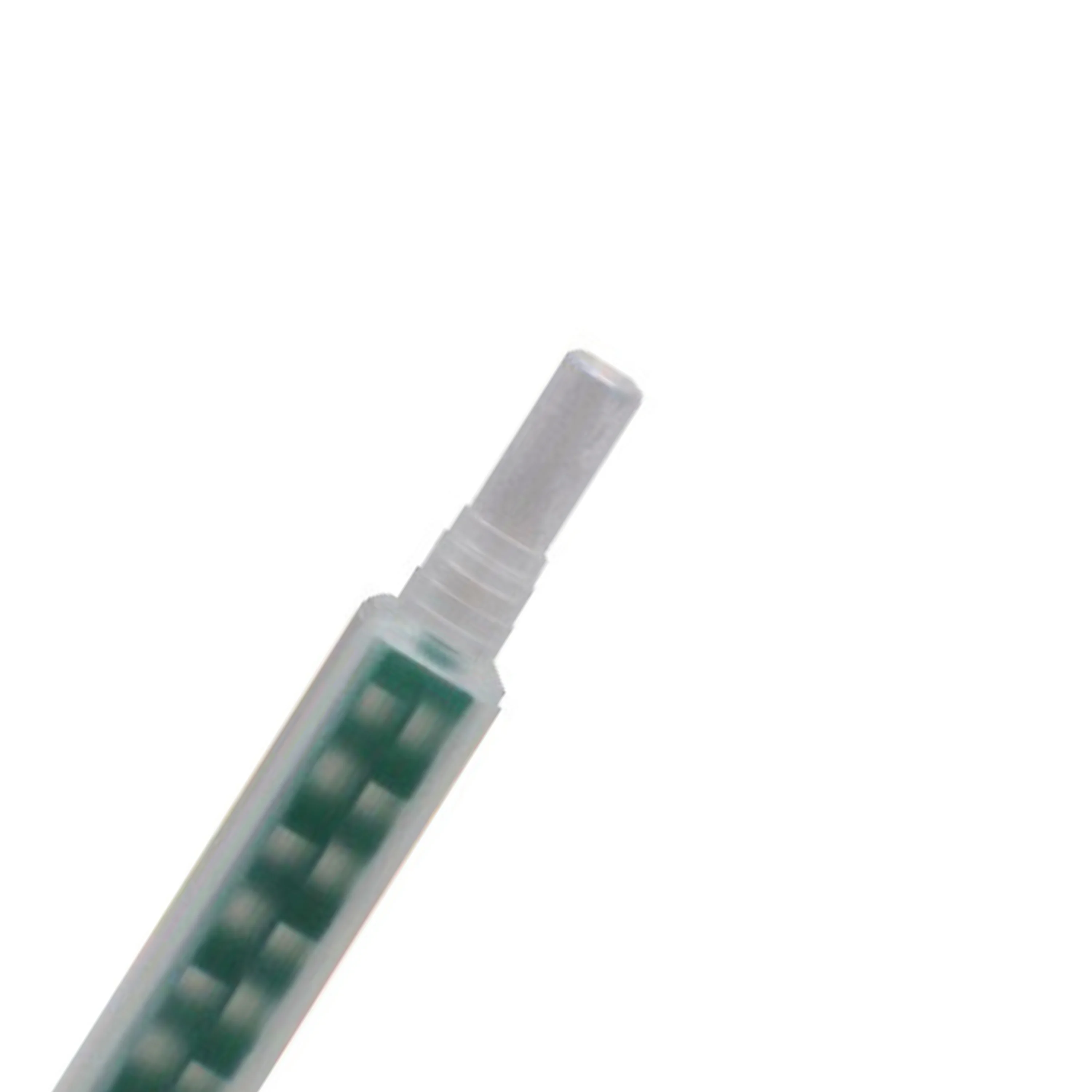

• Luer Lock Outlet: Allows attachment of precision needles or specialty tips for detailed dispensing.
• Compact 3.3-inch (84 mm) Length: Enables close work to bonding surfaces for improved accuracy and reduced waste.

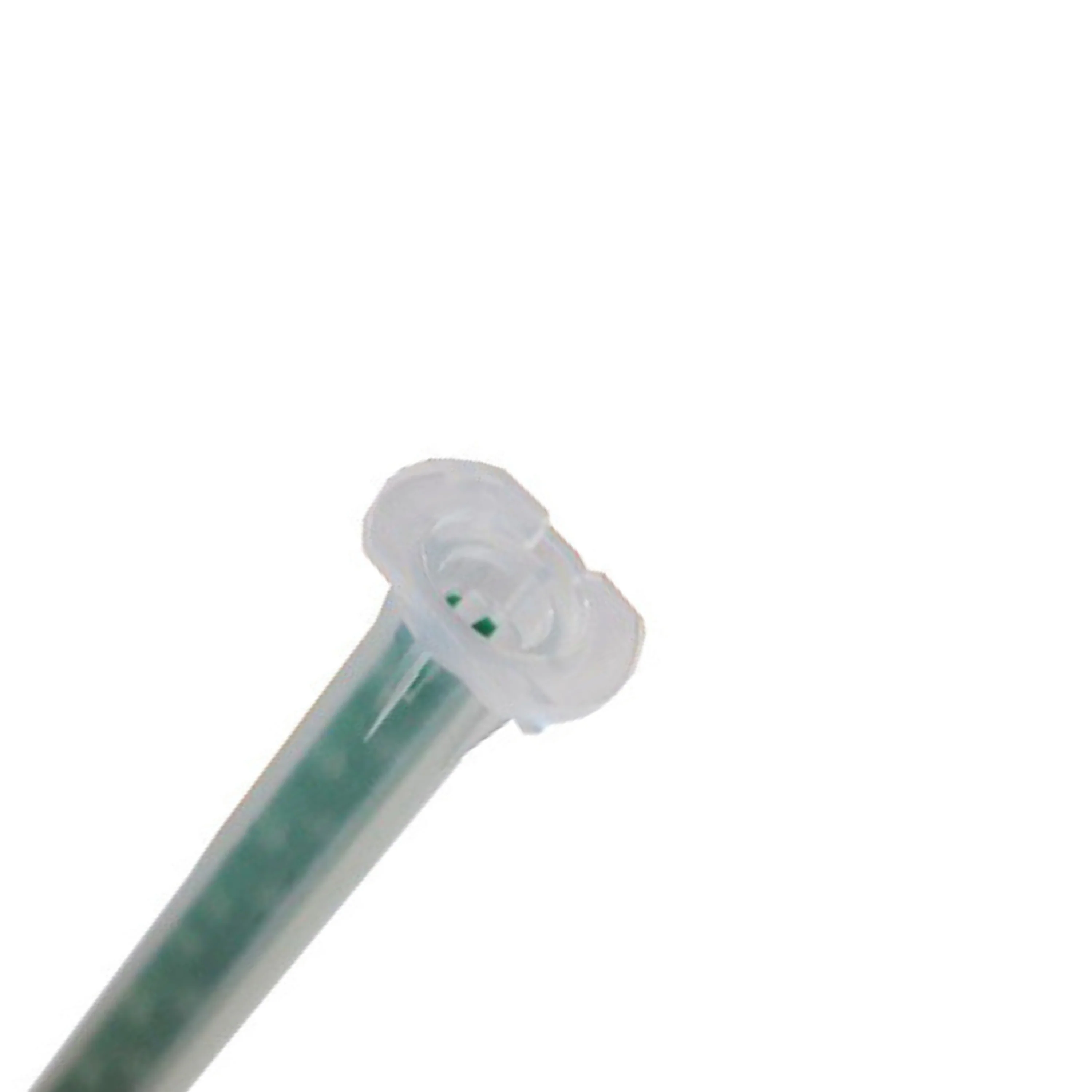

• A-System Cartridge Compatibility: Bayonet connection designed for 50 ml A-System cartridges supporting 1:1 and 2:1 mix ratios.

Technical Specifications

• Part Number: MAQ 05-16L
• Mixer Type: Quadro
• Connection Type: Bayonet
• Outlet Tip: Luer Lock
• Compatible Cartridge Sizes: 50 ml
• Mix Ratios: 1:1, 2:1,
• Number of Elements: 16
• Inner Diameter: 0.209 in / 5.3 mm
• Length: 3.31 in / 84 mm
• System: A-System Cartridges
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Alternative for MAQ 05-16L Static Mixing Nozzle

• Sulzer MAQ 05-16L
