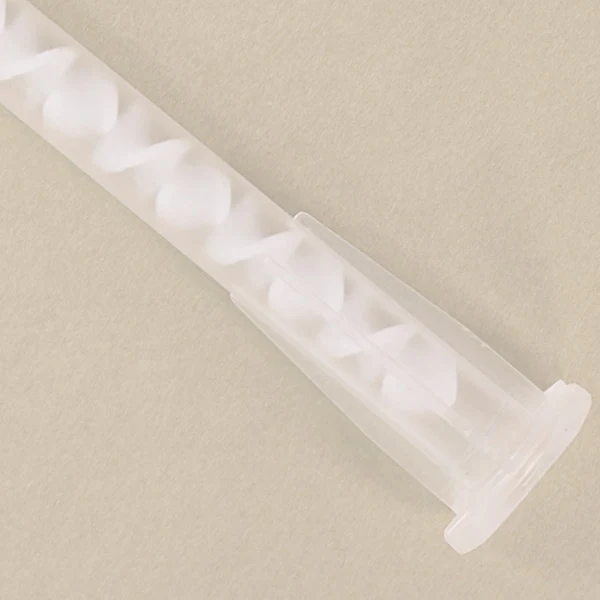

Infinity Bond MAH 06-21T Static Mixing Nozzle for 50 ml Cartridges

The Infinity Bond MAH 06-21T is a high-performance static mixing nozzle designed for 50 ml cartridges in 1:1 and 2:1 ratios. It features a helix-style design with 20 mixing elements and a stepped tip outlet, providing consistent, bubble-free blending of two-part adhesives like epoxies, acrylics, and urethanes. With a secure bayonet connection and 5.85 in (149 mm) length, this nozzle delivers clean, efficient performance in demanding applications. This model is commonly used as a cost-effective alternative to the Sulzer MAH 06-21T, offering similar performance and bayonet compatibility.

MAH 06-21T Disposable Mixing Tip Benefits

• Reliable Helix Mixing: 20 internal elements ensure thorough blending of two-part chemistries for consistent results.
• Bayonet (Twist and Lock) Connection: Enables fast, secure attachment to standard 50 ml cartridges in 1:1 and 2:1 ratios.
• Stepped Outlet Tip: Offers precise, mess-free dispensing and easy trimming for fine control.
• Compact and Efficient: 5.85 in (149 mm) length minimizes adhesive waste while maintaining excellent mixing performance.
• Versatile Compatibility: Ideal for dispensing epoxies, acrylics, urethanes, and other reactive adhesives.

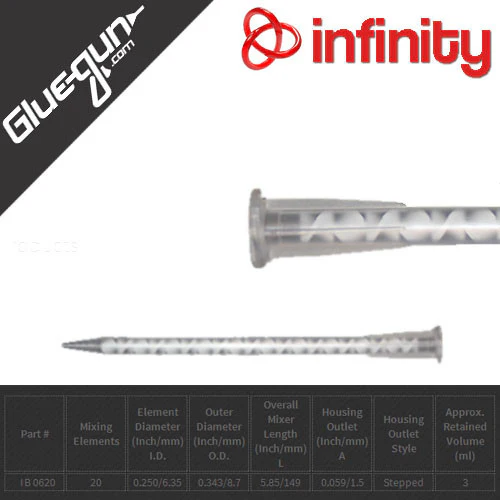

Infinity Bond MAH 06-21T Specifications

• Part Number: MAH 06-21T (Previous: IB 0620)
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 50 ml Cartridges
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 20
• Inner Diameter: 0.250 in / 6.35 mm
• Outer Diameter: 0.343 in / 8.7 mm
• Length: 5.85 in / 149 mm
• Housing Outlet Diameter: 0.059 in / 1.5 mm
• Approx. Retained Volume: 3 ml
• Housing Material: Polypropylene
• Element Material: (Not specified)
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Comparable Infinity Bond MAH 06-21T Mixer Nozzle

• Sulzer MAH 06-21T
