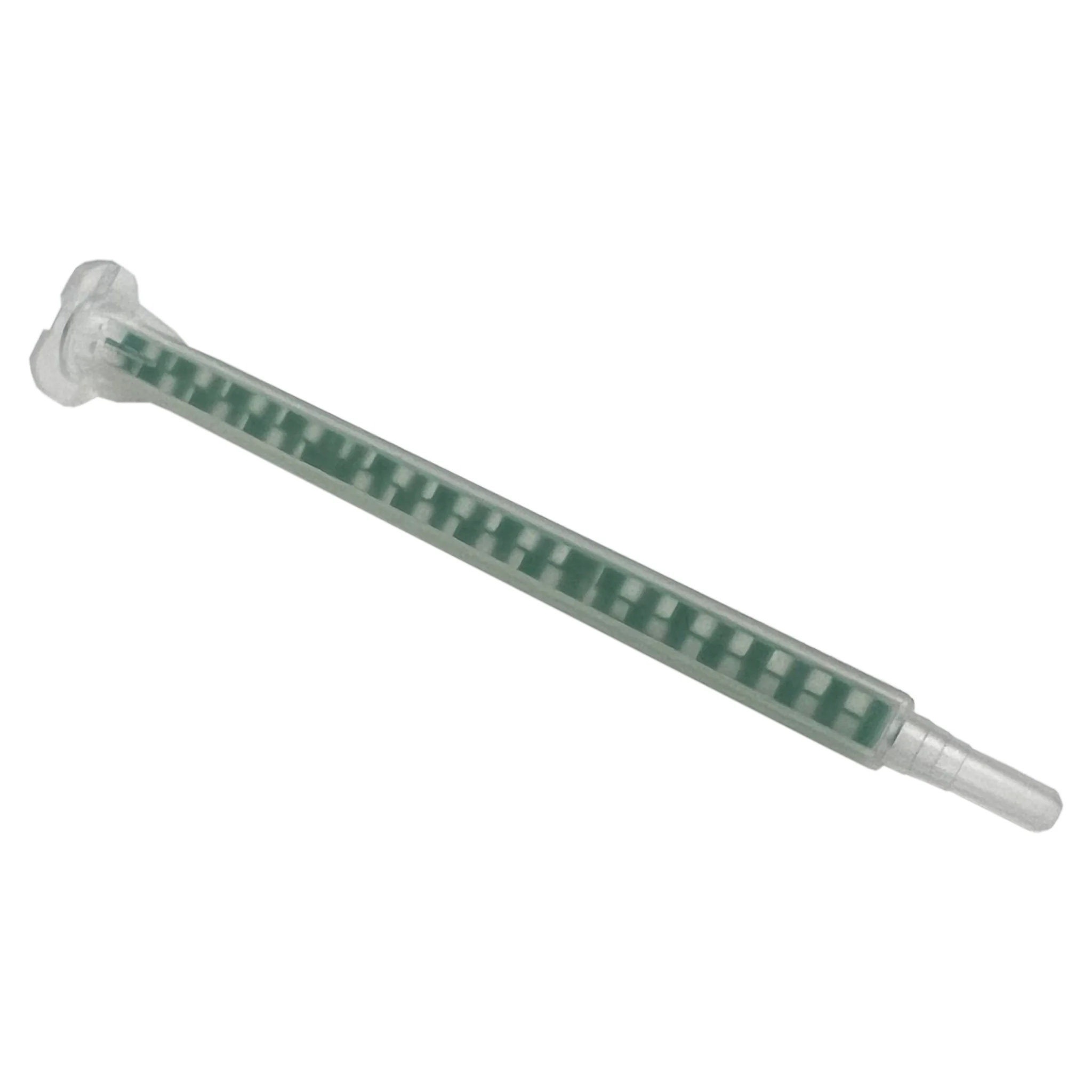

Infinity Bond MAQ 05-24L Quadro Static Mixer Nozzle with Luer Lock Tip

The Infinity Bond MAQ 05-24L static mixer nozzle features a compact 4.528 in (115 mm) length and Quadro mixer design for efficient adhesive blending in tight spaces. With 24 mixing elements, a Luer Lock tip, and a 0.209 in (5.3 mm) inner diameter, it’s engineered for 1:1 and 2:1 dispensing using standard 50 ml cartridges. The MAQ 05-24L supports MMAs, epoxies, polyurethanes, and silicones, and connects to A System cartridges via a bayonet-style attachment. This model is a suitable alternative for Sulzer MAQ 05-24L and similar static mixing nozzles.

Why Choose the MAQ 05-24L Quadro Mixing Nozzles

• Compact Quadro Mixing Design: Delivers high-efficiency adhesive blending in a shorter 4.528 in (115 mm) nozzle for confined or handheld applications.
• Luer Lock Tip for Precision: Provides secure attachment and controlled dispensing for detail-oriented adhesive work.
• Bayonet-Style A System Connection: Ensures quick, secure attachment to 50 ml dual cartridges with a twist-and-lock design.
• Supports 1:1 and 2:1 Adhesive Ratios: Designed for versatility across standard two-part chemistries and applications.
• Durable, Disposable Construction: Single-use mixer made from high-performance plastic for clean, efficient changeovers.

MAQ 05-24L Static Mixing Tip Specifications

• Part Number: MAQ 05-24L
• Mixer Type: Quadro
• Connection Type: Bayonet
• Outlet Tip: Luer Lock
• Compatible Cartridge Sizes: 50 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 24
• Inner Diameter: 0.209 in / 5.3 mm
• Length: 4.528 in / 115 mm
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Compatible Alternatives for MAQ 05-24L Mixing Tips

• Sulzer MAQ 05-24L
