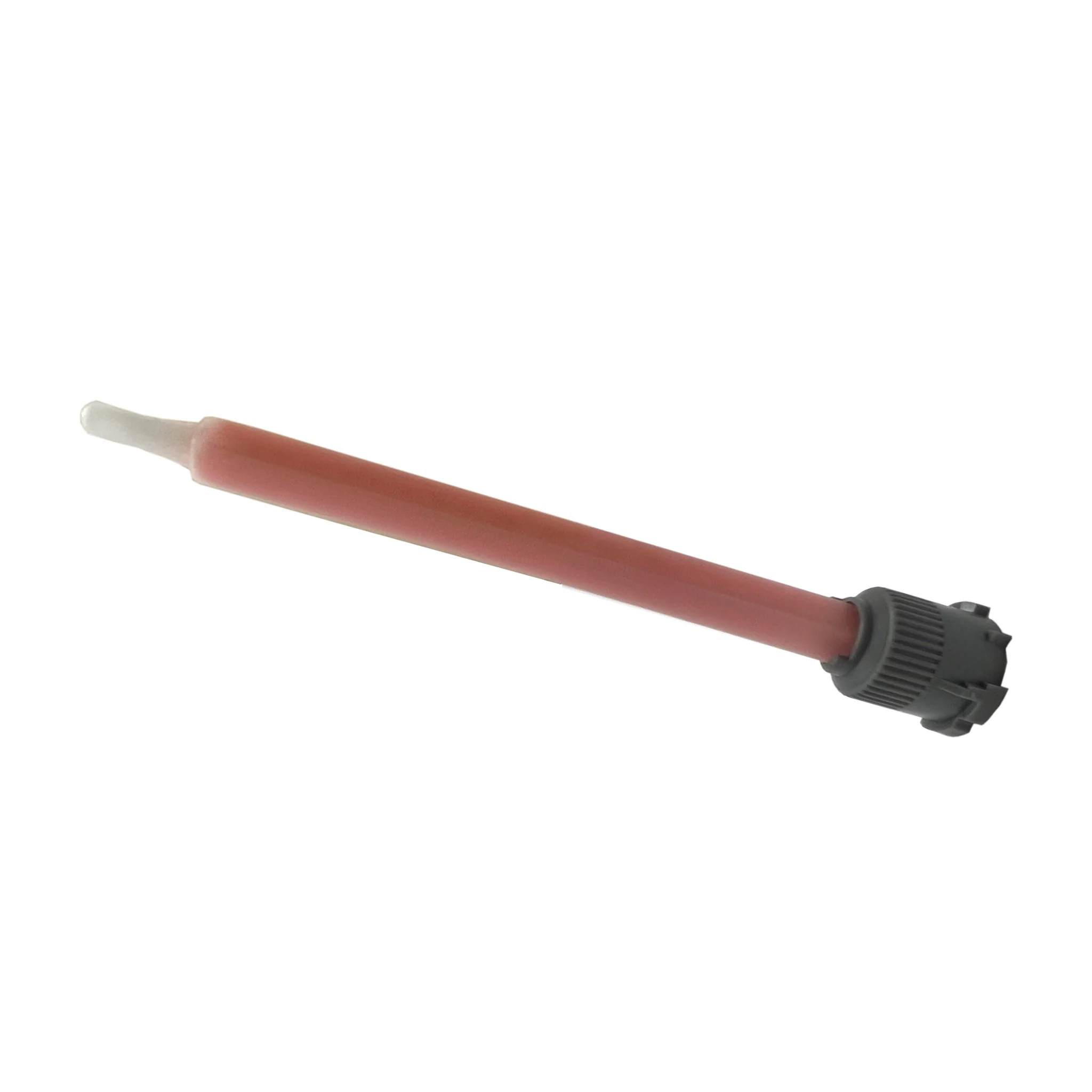

Infinity Bond MBQX 05-24L Quadro Static Mixing Nozzles for 4:1 and 10:1 Dispensing

The Infinity Bond MBQX 05-24L static mixing nozzle features a compact Quadro design with 24 internal elements and a Luer Lock outlet tip for secure, precise dispensing. It uses a twist-and-lock connection and is compatible with 50 ml cartridges in 4:1 and 10:1 mix ratios. This mixer is ideal for high-performance dispensing of epoxies, MMAs, silicones, and polyurethanes. This mixer is a compatible alternative to the Sulzer MBQX 05-24L static nozzle.

Why Choose the MBQX 05-24L Adhesive Mixing Nozzle

• Quadro Mixing Performance: 24 internal elements deliver consistent blending in a compact, high-efficiency design.
• Luer Lock Outlet Tip: Provides secure, leak-resistant attachment to a wide range of dispensing needles and accessories.
• Optimized for High-Ratio Adhesives: Designed specifically for 4:1 and 10:1 adhesive systems using 50 ml cartridges.
• Twist-and-Lock Connection: Offers fast, secure attachment to dual cartridge systems for reliable dispensing.
• Compact Nozzle Footprint: Shorter body allows for precise application close to the bond line.
• Disposable Static Mixer Design: Single-use construction ensures clean operation with minimal cleanup.

Technical Specifications

• Part Number: MBQX 05-24L
• Mixer Type: Quadro
• Connection Type: Twist and Lock
• Outlet Tip: Luer Lock
• Compatible Cartridge Sizes: 50 ml
• Mix Ratios: 4:1 and 10:1
• Number of Elements: 24
• Inner Diameter: 0.209 in / 5.3 mm
• Outer Diameter: ~0.287 in / 7.3 mm
• Length: ~4.803 in / 122 mm
• Outlet Orifice Diameter: ~0.041 in / 1.05 mm
• Approx. Retained Volume: ~2.37 ml
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MBQX 05-24L Mixer Tips

• Sulzer MBQX 05-24L
