Infinity Bond MCH 05-18T Disposable Static Mixer Nozzle
Infinity Bond MCH 05-18T Helix Static Mixing Nozzle for C-System Cartridges
The Infinity Bond MCH 05-18T helix static mixing nozzle provides reliable, consistent blending of two-part adhesives. It features 18 mixing elements with a 0.23 in (5.8 mm) inner diameter, a 4.8 in (121 mm) length, and a stepped outlet tip that can be trimmed to adjust bead size. Designed for use with 200 ml and 400 ml cartridges in the C-System, it supports 1:1 and 2:1 mix ratios and is also compatible with low-pressure meter mix dispensing equipment. Suitable for methyl methacrylates (MMAs), epoxies, polyurethanes, and silicones, this model is a comparable alternative to the Sulzer MCH 05-18T static mixing nozzle.
Top Advantages of the MCH 05-18T Static Nozzles
- Helix Mixing Design: 18 internal elements provide efficient and uniform blending of two-part adhesives.

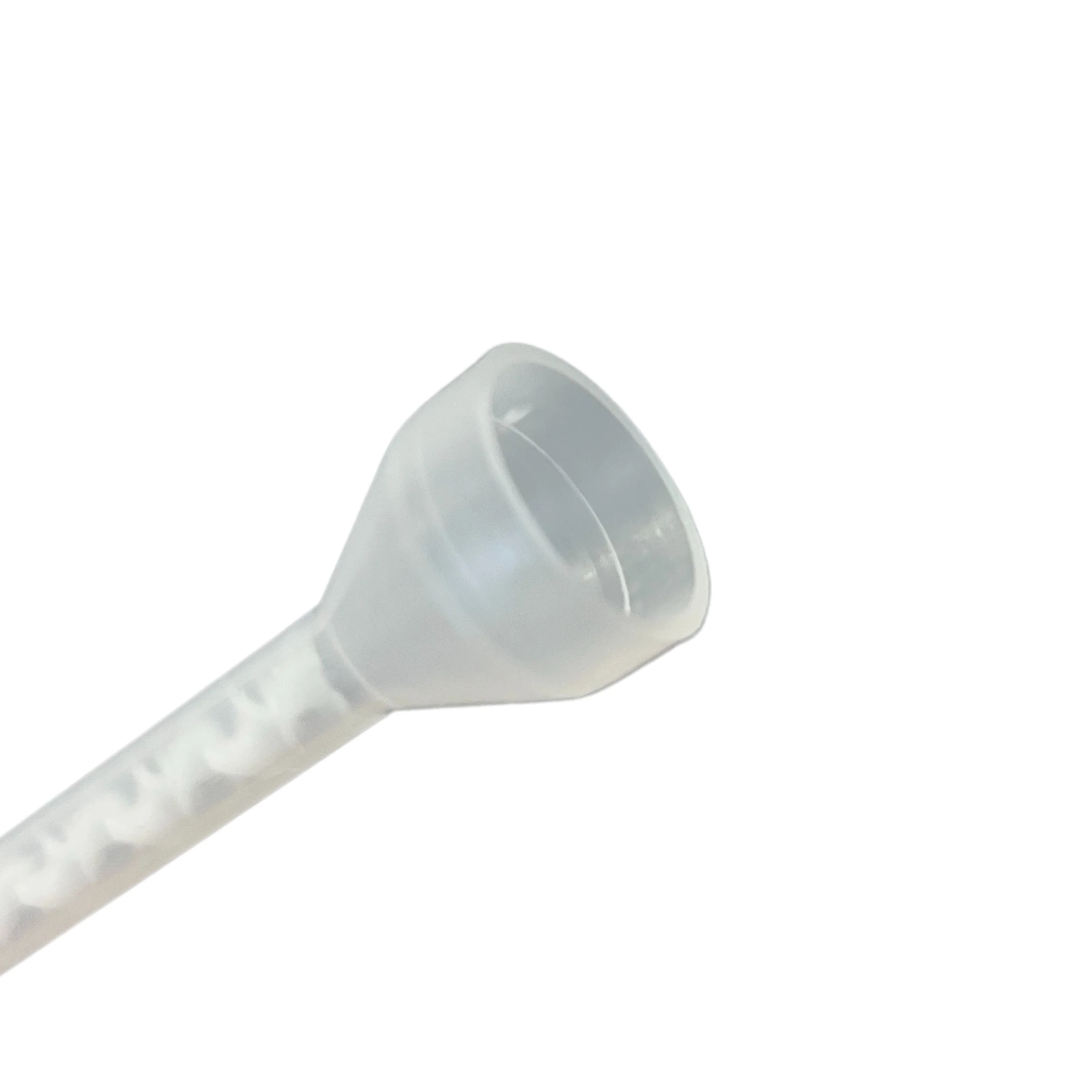

- Bell Connection Interface: Securely attaches to C-System cartridges using a standard retaining nut.

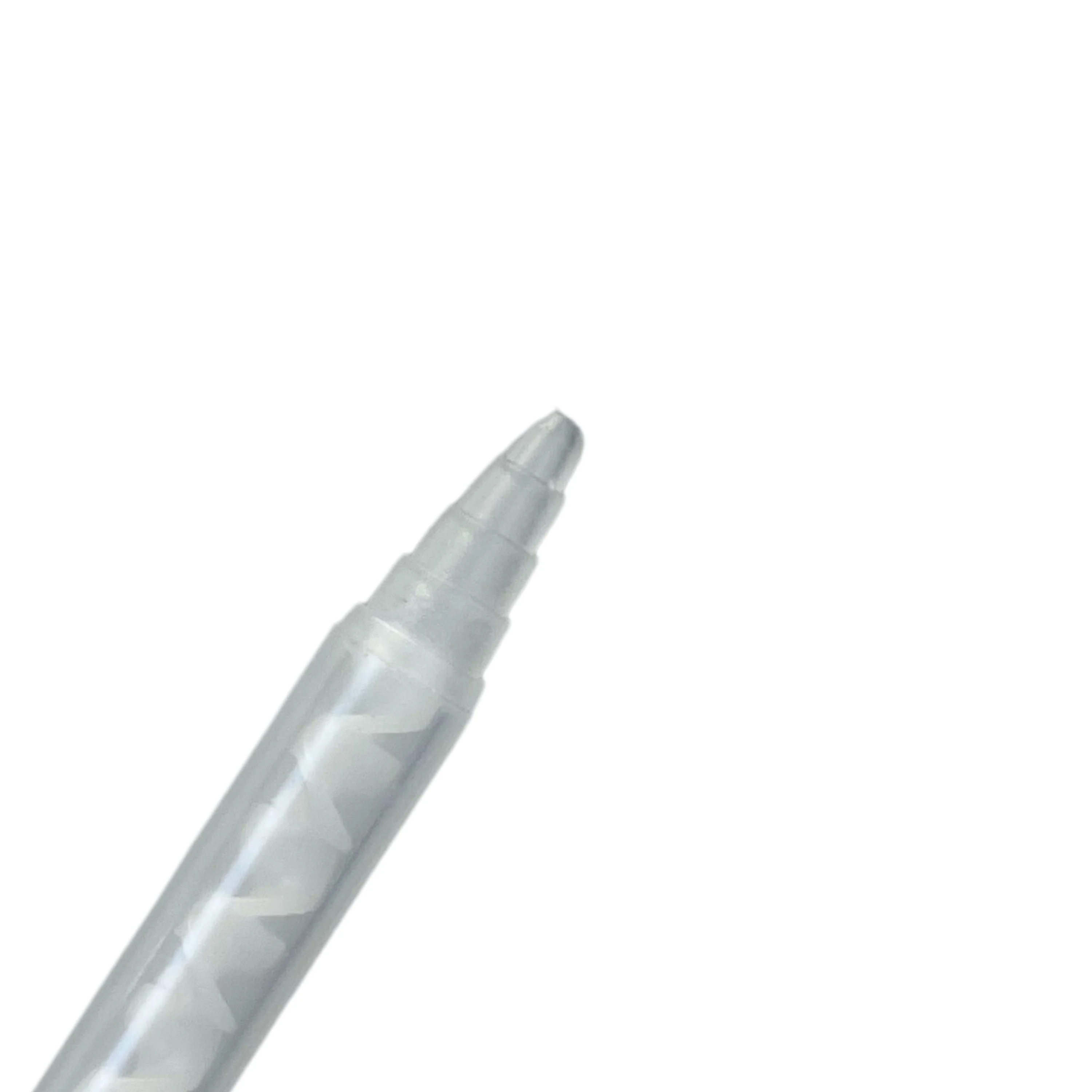

- Stepped Outlet Tip: Trim to control bead diameter for precise application.
- Versatile Compatibility: Works with 200 ml and 400 ml cartridges as well as low-pressure meter mix dispensing equipment.
- Low-Pressure MMD Ready: Performs reliably with low-pressure meter mix dispensing equipment for smooth, consistent output.
- Compact 4.8 in (121 mm) Length: Ideal for applications where space is limited without compromising mixing performance.
Technical Specifications
- Part Number: MCH 05-18T
- Mixer Type: Helix
- Connection Type: Bell
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200 ml, 400 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 18
- Inner Diameter: 0.23 in / 5.8 mm
- Outer Diameter: 0.3 in / 7.8 mm
- Length: 4.8 in / 121 mm
- Outlet Orifice Diameter: 0.06 in / 1.7 mm
- System: C-System Cartridges and Low-Pressure Meter Mix Dispensing Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)
Comparable Alternatives for MCH 05-18T Static Mixing Nozzles
-
Sulzer MCH 05-18T
Original: $95.00
-65%$95.00
$33.25Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Infinity Bond MCH 05-18T Helix Static Mixing Nozzle for C-System Cartridges
The Infinity Bond MCH 05-18T helix static mixing nozzle provides reliable, consistent blending of two-part adhesives. It features 18 mixing elements with a 0.23 in (5.8 mm) inner diameter, a 4.8 in (121 mm) length, and a stepped outlet tip that can be trimmed to adjust bead size. Designed for use with 200 ml and 400 ml cartridges in the C-System, it supports 1:1 and 2:1 mix ratios and is also compatible with low-pressure meter mix dispensing equipment. Suitable for methyl methacrylates (MMAs), epoxies, polyurethanes, and silicones, this model is a comparable alternative to the Sulzer MCH 05-18T static mixing nozzle.
Top Advantages of the MCH 05-18T Static Nozzles
- Helix Mixing Design: 18 internal elements provide efficient and uniform blending of two-part adhesives.
- Bell Connection Interface: Securely attaches to C-System cartridges using a standard retaining nut.
- Stepped Outlet Tip: Trim to control bead diameter for precise application.
- Versatile Compatibility: Works with 200 ml and 400 ml cartridges as well as low-pressure meter mix dispensing equipment.
- Low-Pressure MMD Ready: Performs reliably with low-pressure meter mix dispensing equipment for smooth, consistent output.
- Compact 4.8 in (121 mm) Length: Ideal for applications where space is limited without compromising mixing performance.
Technical Specifications
- Part Number: MCH 05-18T
- Mixer Type: Helix
- Connection Type: Bell
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200 ml, 400 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 18
- Inner Diameter: 0.23 in / 5.8 mm
- Outer Diameter: 0.3 in / 7.8 mm
- Length: 4.8 in / 121 mm
- Outlet Orifice Diameter: 0.06 in / 1.7 mm
- System: C-System Cartridges and Low-Pressure Meter Mix Dispensing Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)
Comparable Alternatives for MCH 05-18T Static Mixing Nozzles
-
Sulzer MCH 05-18T
