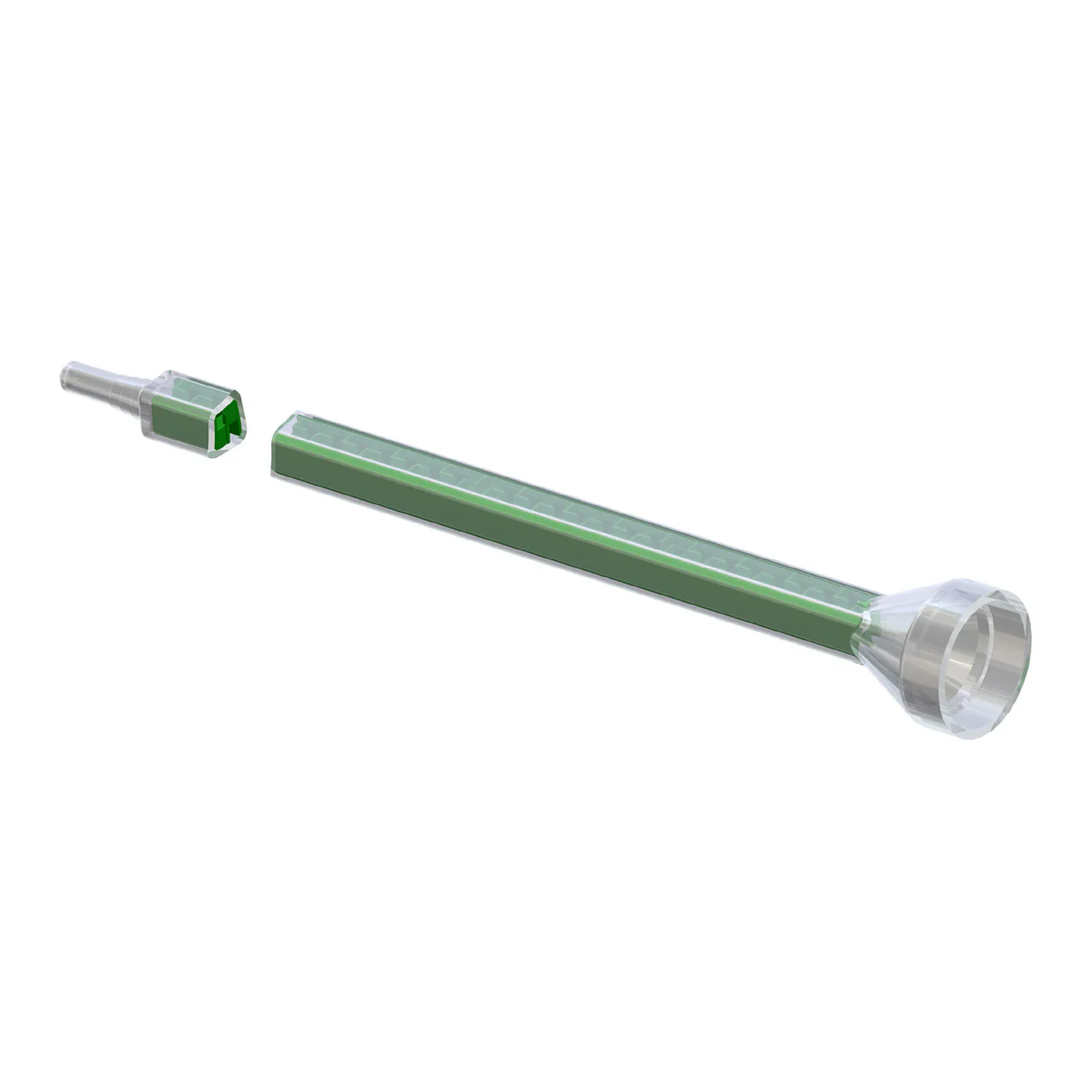

Infinity Bond MCQ 05-24L Quadro Static Mixing Nozzle with Luer Lock Tip for C-System & Q-System Cartridges

The Infinity Bond MCQ 05-24L quadro static mixing nozzle provides efficient, precise blending of two-part adhesives in a compact design. Featuring 24 mixing elements with a 0.209 in (5.3 mm) inner diameter, a 5.0 in (127 mm) length, and a luer lock outlet, it allows users to attach needles or specialty tips for fine, controlled dispensing. Designed for use with 1:1 and 2:1 mix ratios in 200 ml and 400 ml C/Q System cartridges. Suitable for methyl methacrylates (MMAs), epoxies, polyurethanes, silicones, acrylics, and polyesters, this model is a comparable alternative to the Sulzer MCQ 05-24L static mixing nozzle.

Why Choose the MCQ 05-24L C System Static Mixing Nozzles

• Quadro Mixing Design: 24 square elements provide efficient, thorough blending of two-part adhesives.

• Luer Lock Outlet: Enables attachment of needles or specialty tips for precision or specialty dispensing.

• Compact 5.0 in (127 mm) Length: Allows working closer to bonding materials for reduced waste and improved control.

• Versatile Cartridge Compatibility: Works with 200 ml and 400 ml C-System and Q-System cartridges.

• Supports Multiple Mix Ratios: Designed for 1:1 and 2:1 adhesive dispensing.

MCQ 05-24L Specifications

• Part Number: MCQ 05-24L

• Mixer Type: Quadro

• Connection Type: Bell

• Outlet Tip: Luer Lock

• Compatible Cartridge Sizes: 200 ml, 400 ml

• Mix Ratios: 1:1 and 2:1

• Number of Elements: 24

• Inner Diameter: 0.209 in / 5.3 mm

• Length: 5.0 in / 127 mm

• System: C-System and Q-System Cartridges

• Used With: Two-Part Epoxies, Polyurethanes, Silicones, Methyl Methacrylates (MMA), and Acrylics

Alternatives for MCQ 05-24L Quadro Static Mixing Nozzles

• Sulzer MCQ 05-24L
