Infinity Bond MCQ 08-24T Quadro Static Mixer Nozzle for C-System and Q-System Cartridges

The Infinity Bond MCQ 08-24T static mixer nozzle features a compact Quadro design with 24 elements, an 8 mm inner diameter, and a length of 5.787 in (147 mm) for efficient two-part adhesive mixing in a smaller footprint. Its stepped outlet tip can be cut to achieve the desired bead size, offering flexibility for various bonding applications. Designed for use with 200 ml and 400 ml C-System and Q-System cartridges, this disposable mixer supports dispensing in 1:1 and 2:1 ratios and is compatible with chemistries such as methyl methacrylates (MMAs), epoxies, polyurethanes, and silicones. This model is a great alternative to the Sulzer MCQ 08-24T static mixer nozzle.

Key Features of the MCQ 08-24T Adhesive Mixing Nozzle

• Quadro Mixing Technology: Square mixing elements ensure complete blending of two-part adhesives for consistent, high-quality results.

• Versatile Cartridge Compatibility: Works with 200 ml and 400 ml C-System and Q-System cartridges for flexible application needs.

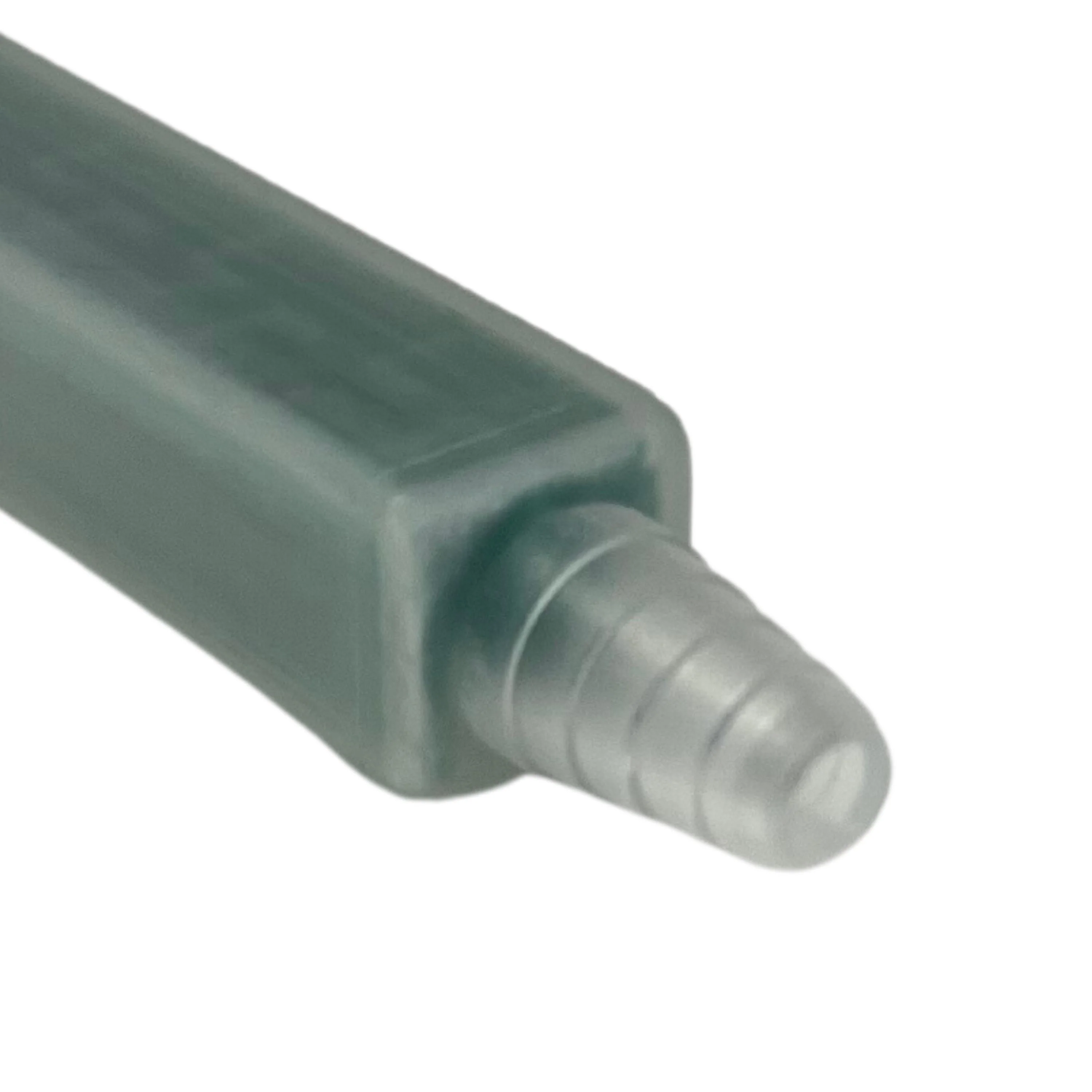

• Adjustable Stepped Tip: Enables precise control over bead size by trimming the nozzle to suit your project requirements.

• Reliable Ratio Support: Handles both 1:1 and 2:1 mix ratios with ease for a wide range of adhesive systems.

• Optimized Size: Measures 5.787 in (147 mm) in length with an 8 mm inner diameter for balanced flow rate and mixing performance.

• Durable, Single-Use Construction: Disposable design helps maintain clean, contamination-free dispensing.

MCQ 08-24T Specifications

• Part Number: MCQ 08-24T

• Mixer Type: Quadro

• Connection Type: Bell

• Outlet Tip: Stepped

• Compatible Cartridge Sizes: 200 ml, 400 ml

• Mix Ratios: 1:1 and 2:1

• Number of Elements: 24

• Inner Diameter: 0.315 in / 8 mm

• Length: 5.787 in / 147 mm

• System: C-System and Q-System Cartridges

• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Alternatives for MCQ 08-24T Static Mixer Nozzles

• Sulzer MCQ 08-24T
