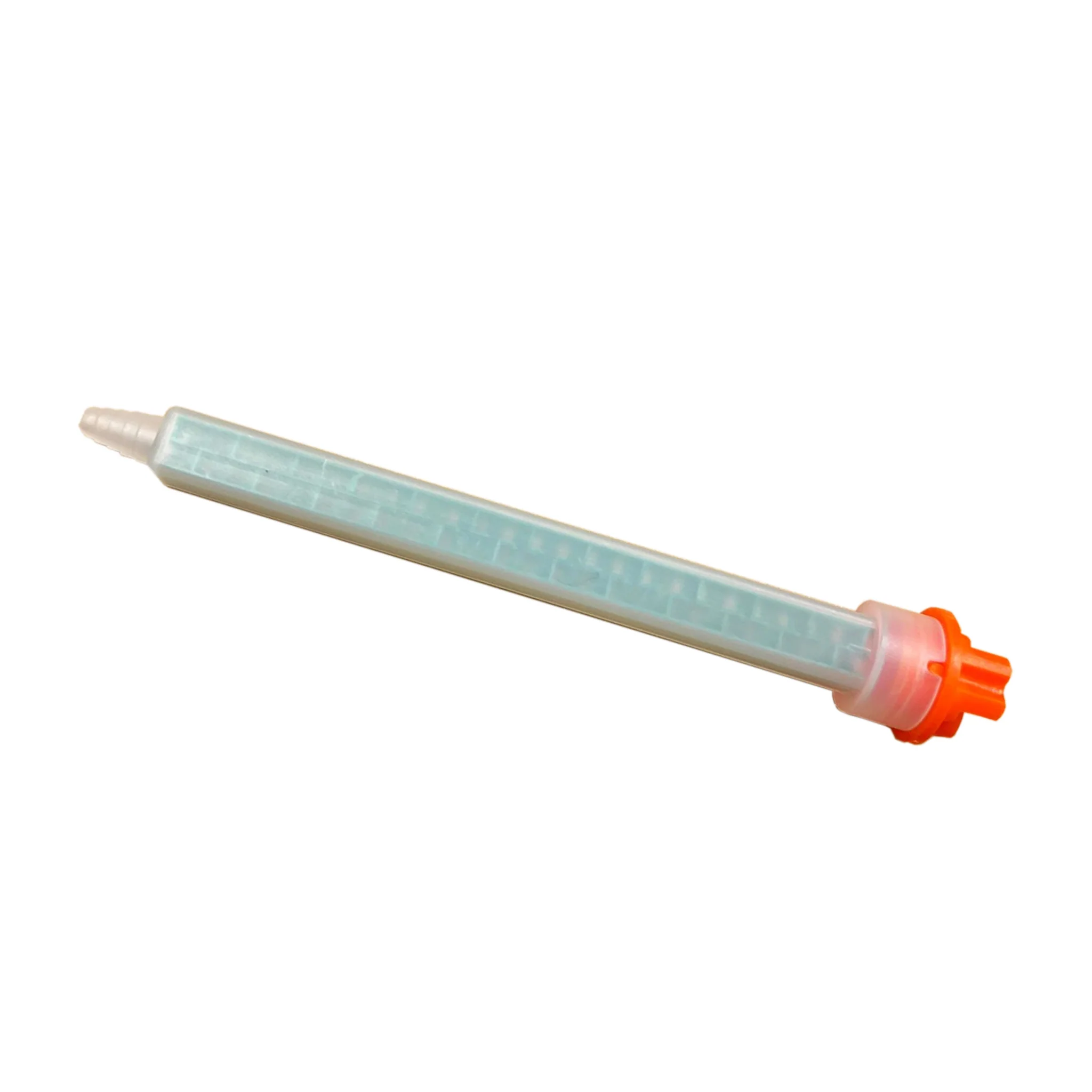

Infinity Bond MFQX 08-24T Quadro Static Mixer Nozzle for 4:1 and 10:1 Adhesives

The Infinity Bond MFQX 08-24T static mixing nozzle features a compact Quadro design with 24 internal elements and a stepped tip for controlled adhesive dispensing. Built for 4:1 and 10:1 two-part systems, this mixer uses the F-System connection and is compatible with 400 ml and 490 ml cartridges. Its shorter body allows users to work closer to the bonding surface while keeping A and B materials separate until the point of mixing—reducing clogs and improving flow. The MFQX 08-24T is a compatible alternative to the Sulzer MFQX 08-24T static mixer nozzle.

MFQX 08-24T Static Mixing Tip Advantages

• Compact Quadro Mixer Design: Delivers consistent adhesive blending with 24 internal elements in a shorter footprint.
• Stepped Tip Outlet: Allows for adjustable bead size and clean, precise dispensing during application.
• Engineered for 4:1 and 10:1 Adhesives: Ideal for high-ratio dispensing of MMAs, epoxies, silicones, and polyurethanes.
• F-System Compatibility: Uses a twist-and-lock F-Series connection for secure attachment to 400 ml and 490 ml cartridges.
• Reduced Clogging Risk: Quadro structure keeps components separated until the point of mix to help prevent premature curing inside the nozzle.
• Disposable Static Mixer Design: Single-use construction offers clean, efficient workflow with minimal cleanup.

Mixer Nozzle Specifications

• Part Number: MFQX 08-24T
• Mixer Type: Quadro
• Connection Type: F-System (Twist and Lock)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 400, 490 ml
• Mix Ratios: 4:1 and 10:1
• Number of Elements: 24
• Inner Diameter: 0.343 in / 8.7 mm
• Outer Diameter: ~0.472 in / 12.0 mm
• Length: ~6.102 in / 155 mm
• Outlet Orifice Diameter: ~0.129 in / 3.28 mm
• Approx. Retained Volume: ~8.86 ml
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

MFQX 08-24T Compatible Mixer Tip Alternatives

• Sulzer MFQX 08-24T
