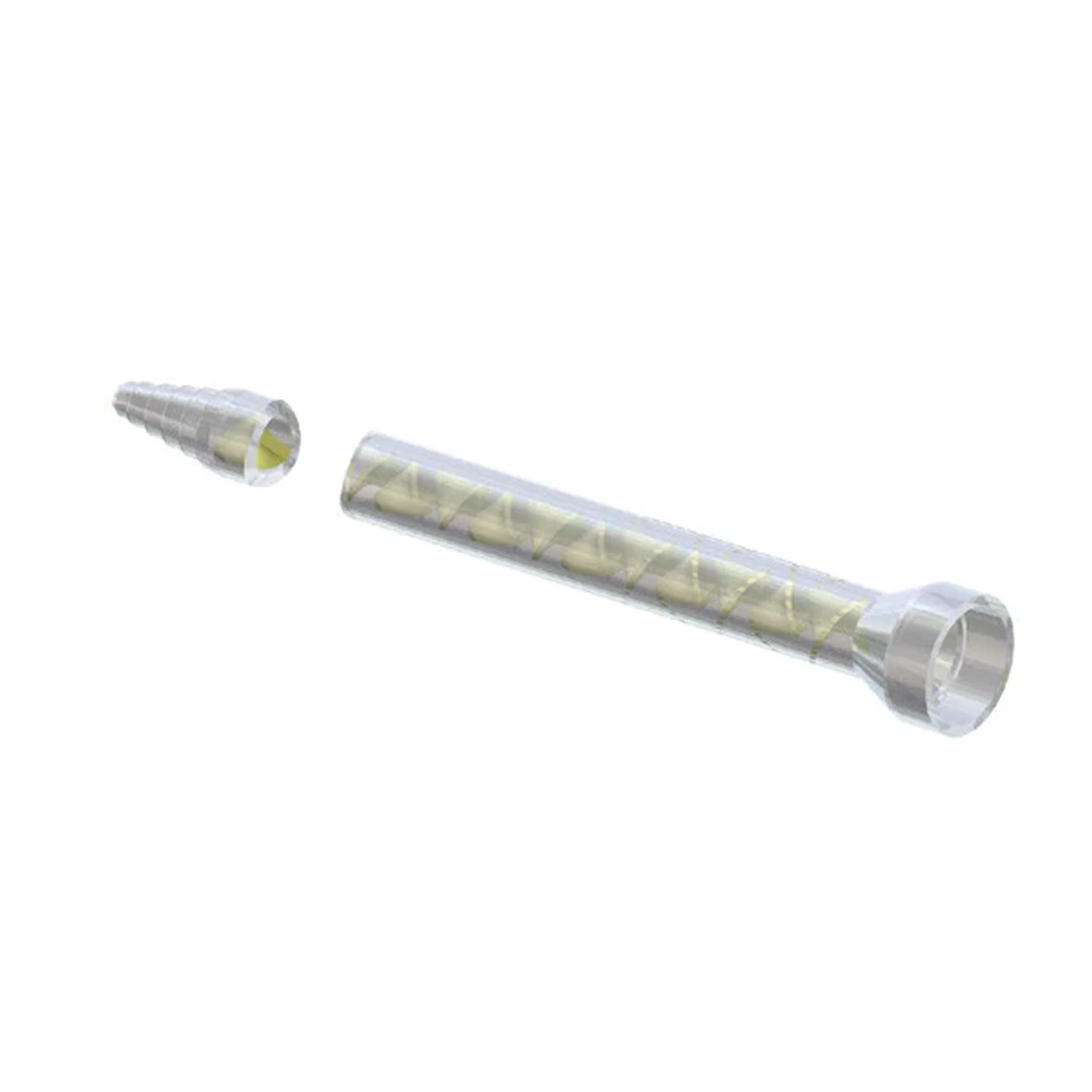

Infinity Bond MS 05-24T Bell Connection Mixer Tip for Two-Part Adhesives

The Infinity Bond MS 05-24T static mixer features a helix design with 24 mixing elements, a 0.197 in (5.00 mm) inner diameter, and a 5.87 in (149 mm) overall length. This nozzle uses a standard bell connection for compatibility with C-System cartridges and Meter Mix Dispense (MMD) equipment, and includes a stepped tip for clean, adjustable adhesive flow. Ideal for dispensing two-part adhesives in 1:1 and 2:1 mix ratios, the MS 05-24T is well-suited for MMAs, silicones, polyurethanes, and epoxies. This model is a compatible alternative to the Sulzer MS 05-24T static mixer nozzle.

MS 05-24T Mixer Tips Performance Benefits

• Helical Mixing Efficiency: 24 internal elements ensure consistent, thorough blending of two-part adhesives.
• Compact Flow Channel: Inner diameter of 0.197 in (5.00 mm) balances precision and throughput.
• Stepped Tip Design: 0.059 in (1.50 mm) outlet allows for clean, controlled dispensing with adjustable bead size.
• Reliable Bell Connection: Compatible with standard C-System cartridges and MMD systems for secure, tool-free installation.
• Built for High-Pressure Dispensing: Designed for applications requiring up to 2.3 ml content volume and stable flow.
• Supports 1:1 and 2:1 Adhesives: Ideal for MMAs, polyurethanes, silicones, and epoxies across multiple use cases.

MS 05-24T Technical Specifications

• Part Number: MS 05-24T
• Mixer Type: Helix
• Connection Type: Bell (C-System)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 24
• Inner Diameter: 0.197 in / 5.00 mm
• Outer Diameter: 0.315 in / 8.00 mm
• Length: 5.87 in / 149 mm
• Outlet Orifice Diameter: 0.059 in / 1.50 mm
• Approx. Retained Volume: 2.3 ml
• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MS 05-24T Machine Mixer Tips

• Sulzer MS 05-24T
