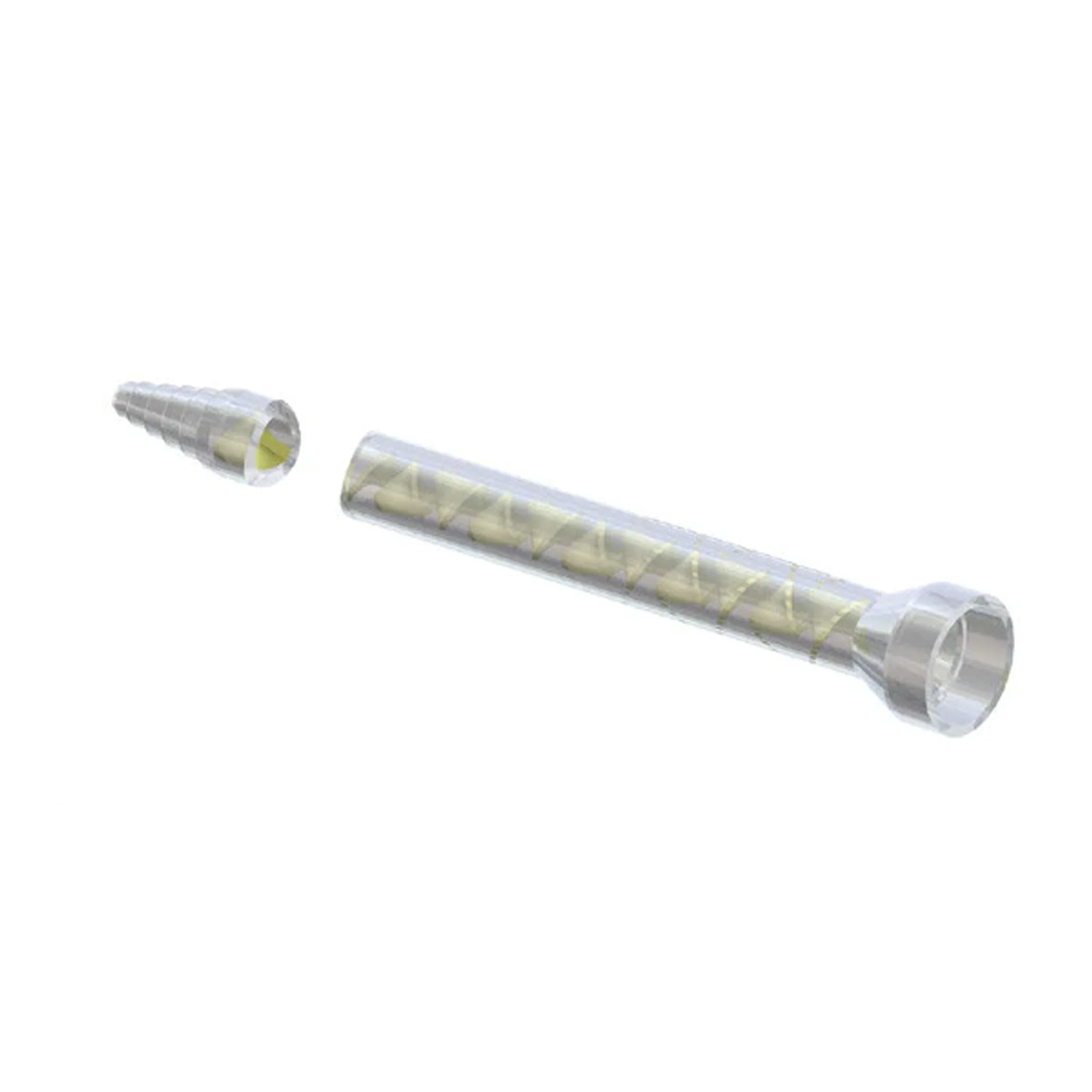

Infinity Bond MS 08-32T Static Mixer Nozzle
MS 08-32T Stepped Tip Mixer Nozzle by Infinity Bond – 11.3 in, Bell Connection
The Infinity Bond MS 08-32T is a high-output static mixer nozzle featuring 32 helical elements inside an 11.3 in (287 mm) body. With a 0.315 in (8.00 mm) inner diameter and a stepped tip outlet, it’s designed to deliver efficient two-part adhesive blending with precise control over flow and bead size. This disposable mixer connects via a standard bell interface for use with C-System cartridges and compatible Meter Mix Dispense (MMD) systems, supporting 1:1 and 2:1 mix ratios. Ideal for MMAs, epoxies, silicones, and polyurethanes, the MS 08-32T is a reliable choice for high-volume adhesive applications. This model is a compatible alternative to the Sulzer MS 08-32T.
What Makes the MS 08-32T Static Mixer Nozzle Stand Out
- Extended 11.3 Inch Mixer Body: With 32 helical elements, this long-body mixer provides excellent blending for high-viscosity two-part adhesives.
- Stepped Tip Outlet for Precision: Easily trim the outlet to control bead size during application—ideal for field or production environments.
- Standard Bell Connection Interface: Quickly attaches to C-System cartridges for secure, leak-free dispensing.
- Optimized for Flow and Volume: The 0.315 in inner diameter supports efficient material transfer without compromising mix quality.
- Supports a Range of Adhesive Chemistries: Reliable with 1:1 and 2:1 MMAs, epoxies, polyurethanes, and silicones.
Specifications
- Part Number: MS 08-32T
- Mixer Type: Helix
- Connection Type: Bell (C-System)
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 32
- Inner Diameter: 0.315 in / 8.00 mm
- Outer Diameter: 0.472 in / 12.00 mm
- Length: 11.3 in / 287 mm
- Outlet Orifice Diameter: 0.094 in / 2.40 mm
- Approx. Retained Volume: 11.5 ml
- System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)
MS 08-32T Machine Mixer – Equivalent Models
- Sulzer MS 08-32T
