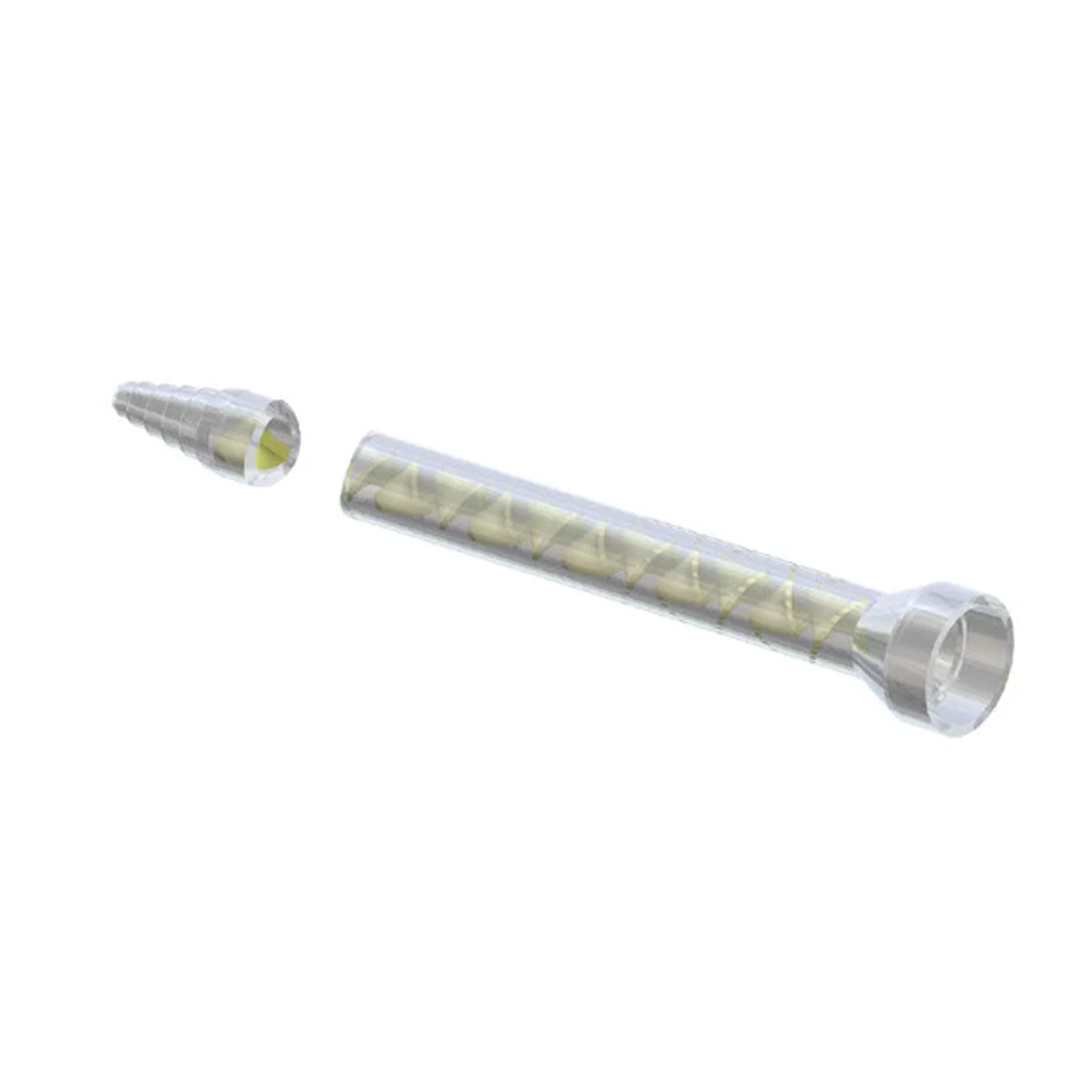

High-Volume Adhesive Mixing Nozzle – Infinity Bond MS 10-18T

The Infinity Bond MS 10-18T is a high-volume static mixing nozzle engineered for efficient two-part adhesive dispensing through C-System cartridges and compatible Meter Mix Dispense (MMD) systems. With 18 helical elements housed in an 8.425 in (214 mm) body and a 0.394 in (10 mm) inner diameter, this stepped tip mixer ensures consistent blending and flow for demanding applications. It supports 1:1 and 2:1 mix ratios and is ideal for use with MMAs, epoxies, silicones, and polyurethanes. This model is a compatible alternative to the Sulzer MS 10-18T.

Top Features of the MS 10-18T Adhesive Mixer

• Optimized for High-Volume Dispensing: With an 8.425 in (214 mm) body and 0.394 in (10 mm) inner diameter, this mixer handles larger adhesive flows with minimal resistance.
• Consistent, Controlled Mixing: 18 internal helical elements deliver reliable blending of two-part adhesives across varied chemistries.
• Stepped Tip for Application Flexibility: Trim the outlet to adjust bead size and match specific bonding needs on the job site.
• C-System Bell Connection: Quickly attaches to standard cartridges and MMD systems for a secure fit and smooth operation during use.
• Supports 1:1 and 2:1 Mix Ratios: Designed to perform across a wide range of two-component materials including MMAs, epoxies, silicones, and more.

Infinity Bond MS 10-18T Specifications

• Part Number: MS 10-18T
• Mixer Type: Helix
• Connection Type: Bell (C-System)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 18
• Inner Diameter: 0.394 in / 10 mm
• Length: 8.425 in / 214 mm
• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MS 10-18T Machine Mixer Tips

• Sulzer MS 10-18T
