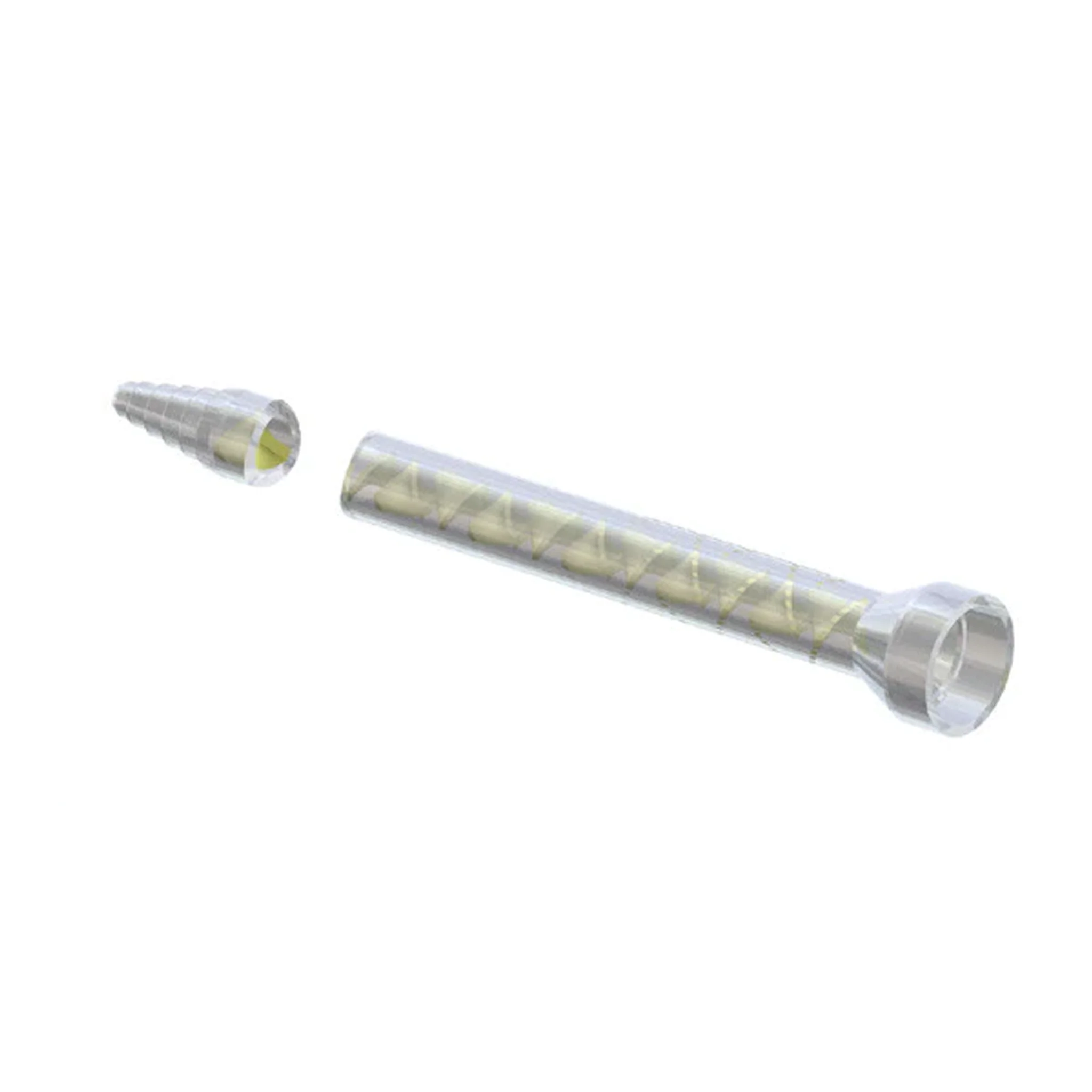

Precision Adhesive Mixing Nozzle – Infinity Bond MS 10-24T

The Infinity Bond MS 10-24T is a precision static mixer nozzle designed for two-part adhesive dispensing through C-System cartridges and Meter Mix Dispense (MMD) equipment. It features 24 helical mixing elements housed in a 10.866 in (276 mm) length with a 0.394 in (10 mm) inner diameter, providing smooth, consistent blending even under high pressure. This stepped tip mixer supports 1:1 and 2:1 mix ratios and is ideal for use with MMAs, epoxies, silicones, and polyurethanes. This model is a compatible alternative to the Sulzer MS 10-24T.

What Makes the MS 10-24T Adhesive Mixing Nozzle Stand Out

• Long Helix Mixer Design: 24 internal elements over a 10.866 in (276 mm) length ensure thorough mixing of two-part adhesives for consistent application.
• Stepped Tip for Precision Dispensing: The outlet can be trimmed to control bead size, making it easy to match flow to application needs.
• C-System Bell Connection: Attaches quickly and securely to standard dual cartridges and MMD systems for fast changeover and minimal downtime.
• Reliable for High-Viscosity Chemistries: With a 0.394 in (10 mm) inner diameter, this mixer handles thicker MMAs, silicones, and epoxies with ease.
• Supports Standard Mix Ratios: Designed to accommodate both 1:1 and 2:1 adhesives in manual or pneumatic dispensing systems.

Infinity Bond MS 10-24T Specifications

• Part Number: MS 10-24T
• Mixer Type: Helix
• Connection Type: Bell (C-System)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 24
• Inner Diameter: 0.394 in / 10 mm
• Length: 10.866 in / 276 mm
• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Replacement for MS 10-24T Machine Mixing Nozzles

• Sulzer MS 10-24T
