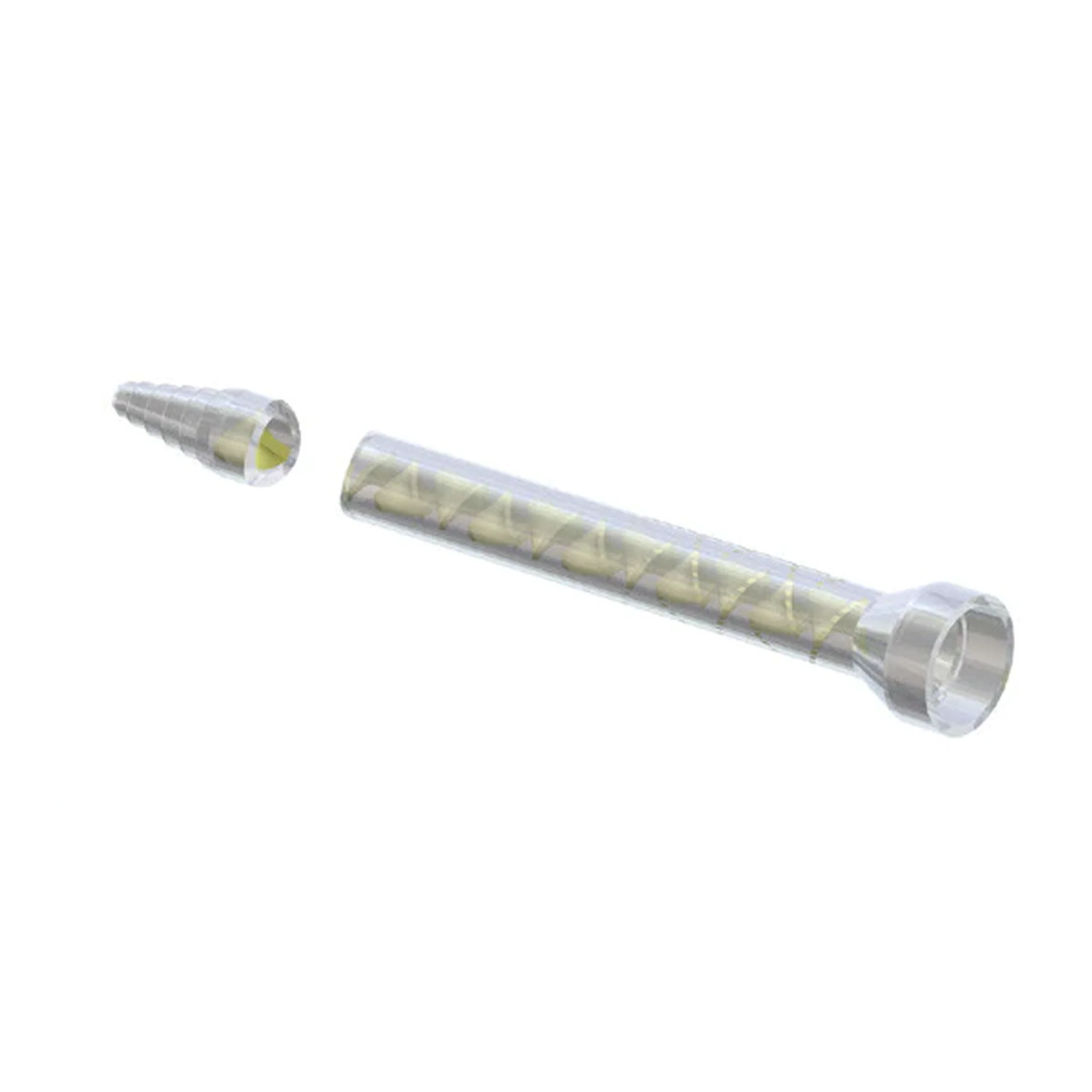

Infinity Bond MS 13-24T Static Mixing Nozzle for C-System Cartridges and MMD Equipment

The Infinity Bond MS 13-24T static mixer nozzle is designed for use with two-part adhesives in C-System cartridges and Meter Mix Dispense (MMD) equipment. This helix-style mixer features 24 elements, a stepped tip for precision control, and a secure bell connection. With a 13 mm inner diameter and 11.535 in (293 mm) length, this model is a great alternative to the Sulzer MS 13-24T static mixer and performs reliably in applications using epoxies, polyurethanes, MMAs, and other reactive adhesives.

Top Benefits of the MS 13-24T Static Mixer Nozzle

• High-Efficiency Mixing: 24 precision-engineered elements ensure consistent blending of two-part adhesives for optimal bond performance.
• Stepped Outlet Tip: Easily trims to control bead diameter, enabling precise adhesive application across a wide range of substrates.
• Durable Construction: Made from tough Polypropylene (PP) and Polyacetal (POM) materials to withstand pressure-intensive environments.
• Versatile Compatibility: Designed for use with C-System cartridges and Meter Mix Dispense (MMD) equipment supporting 1:1 and 2:1 adhesives.
• Extended Length for Enhanced Mixing: Measures 11.535 in (293 mm), offering ample residence time for complete material mixing.

MS 13-24T Machine Mixer Nozzle Specifications

• Part Number: MS 13-24T
• Mixer Type: Helix
• Connection Type: Bell (C-System)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 24
• Inner Diameter: 0.512 in / 13 mm
• Length: 11.535 in / 293 mm
• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Suitable Replacements for MS 13-24T Adhesive Mixing Tips

• Sulzer MS 13-24T
