Infinity Bond MS 13-32T Static Mixing Nozzle with Bell Connection for Two-Part Adhesives

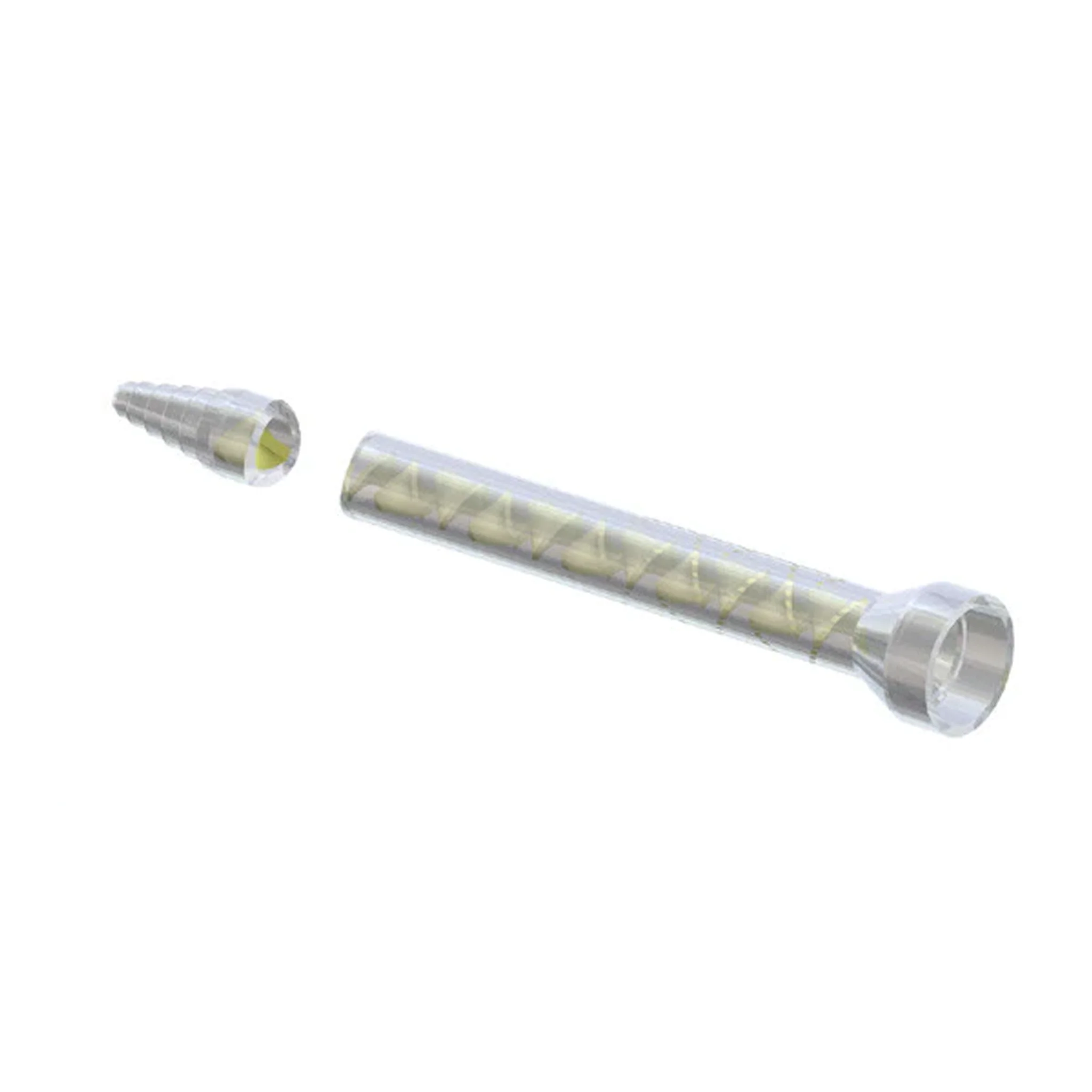

The Infinity Bond MS 13-32T static mixing nozzle features a helical mixer design with 32 elements, a stepped outlet tip, and a bell connection compatible with C-System cartridges. It measures 14.921 in (379 mm) in length with a 0.512 in (13 mm) inner diameter and is designed for dispensing in 1:1 and 2:1 mix ratios using 200 ml, 400 ml, and 600 ml cartridges or Meter Mix Dispense (MMD) equipment. This mixer is ideal for high-volume two-part adhesive applications with epoxies, polyurethanes, silicones, and methyl methacrylates (MMAs). This model is a compatible alternative to the Sulzer MS 13-32T static mixer nozzle.

MS 13-32T Adhesive Mixing Nozzle Benefits

• High Element Count for Maximum Performance: Features 32 precision-molded helical elements for thorough and consistent two-part adhesive mixing.
• Secure Bell Connection: Designed for C-System cartridges, the bell connection ensures reliable, leak-free attachment during dispensing.
• Long Body for Extended Mixing Path: The 14.921 in (379 mm) length promotes enhanced mixing of high-viscosity or fast-reacting adhesives.
• Versatile Stepped Tip Design: Easily trim the stepped outlet to control bead size for precise application and reduced waste.
• Compatible with MMD Equipment: Integrates seamlessly with Meter Mix Dispense (MMD) systems for manual or automated workflows.

Technical Specifications

• Part Number: MS 13-32T
• Mixer Type: Helix
• Connection Type: Bell (C-System)
• Outlet Tip: Stepped
• Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
• Mix Ratios: 1:1 and 2:1
• Number of Elements: 32
• Inner Diameter: 0.512 in / 13 mm
• Length: 14.921 in / 379 mm
• System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
• Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)

Compatible Alternatives for MS 13-32T Mixer Tips

• Sulzer MS 13-32T
