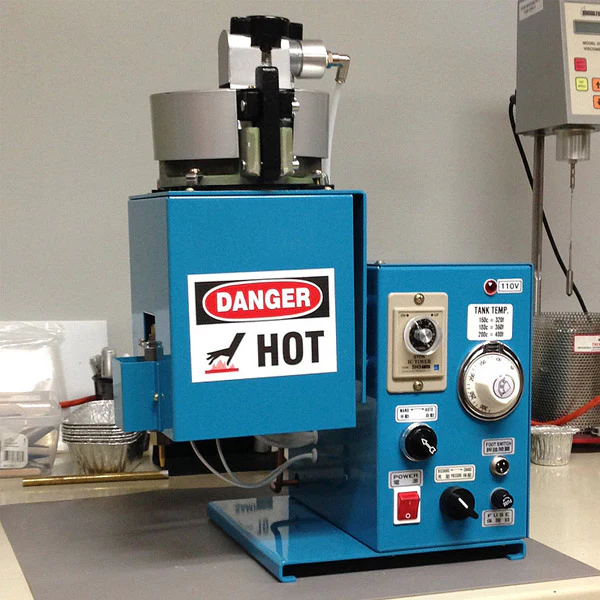

About the Metered Pneumatic Bulk Hot Melt Dispenser

This industrial stationary pneumatic hot melt dispenser from Surebonder is ideal for applications that need hand free assembly capabilities. Surebonder 753 bulk applicator holds 2 pounds of hot melt adhesive and a melt rate of 5.5 pounds per hour. This metered hot melt dispenser takes chips, pellets, pricks, and slats. The 753 pneumatic dispenser takes approximately 20 minutes to heat up.

Call us with any questions 855-437-7700 or contact us

Additional Information

• Adjustable Temperature: 200°F to 500°F. ( 93°C. to 260°C.)
• Watts Volts: 800 Watts, 120 Volts
• Air Supply: 40 to 60 PSI
• Adhesive Shape: Slats, Chips, Pellets, Bricks
• Throat Depth: 6-1/2"
• Dimensions: 18-1/4" High, 10-1/4" Wide, 8-3/8" Length
• Weight: 35 Pounds
• Tank Capacity: 2 Pounds
• Viscosity Maximum: 20,000 CPS

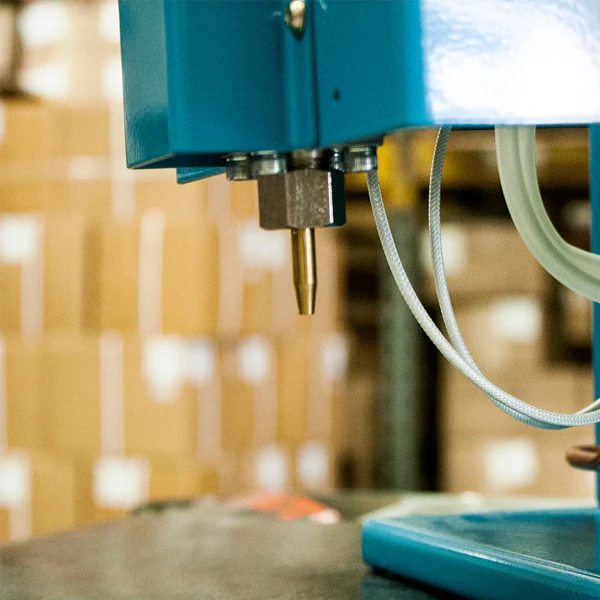

• Nozzles Orifices: .040", .080", .125"
• Melt Rate: 5.5 lbs per hour
• Flow Control: yes
• Warm Up time: 20 minutes
