Infinity Bond MS 08-24T Static Mixer Nozzle
MS 08-24T Static Mixing Nozzle from Infinity Bond – Bell Connection, Stepped Tip

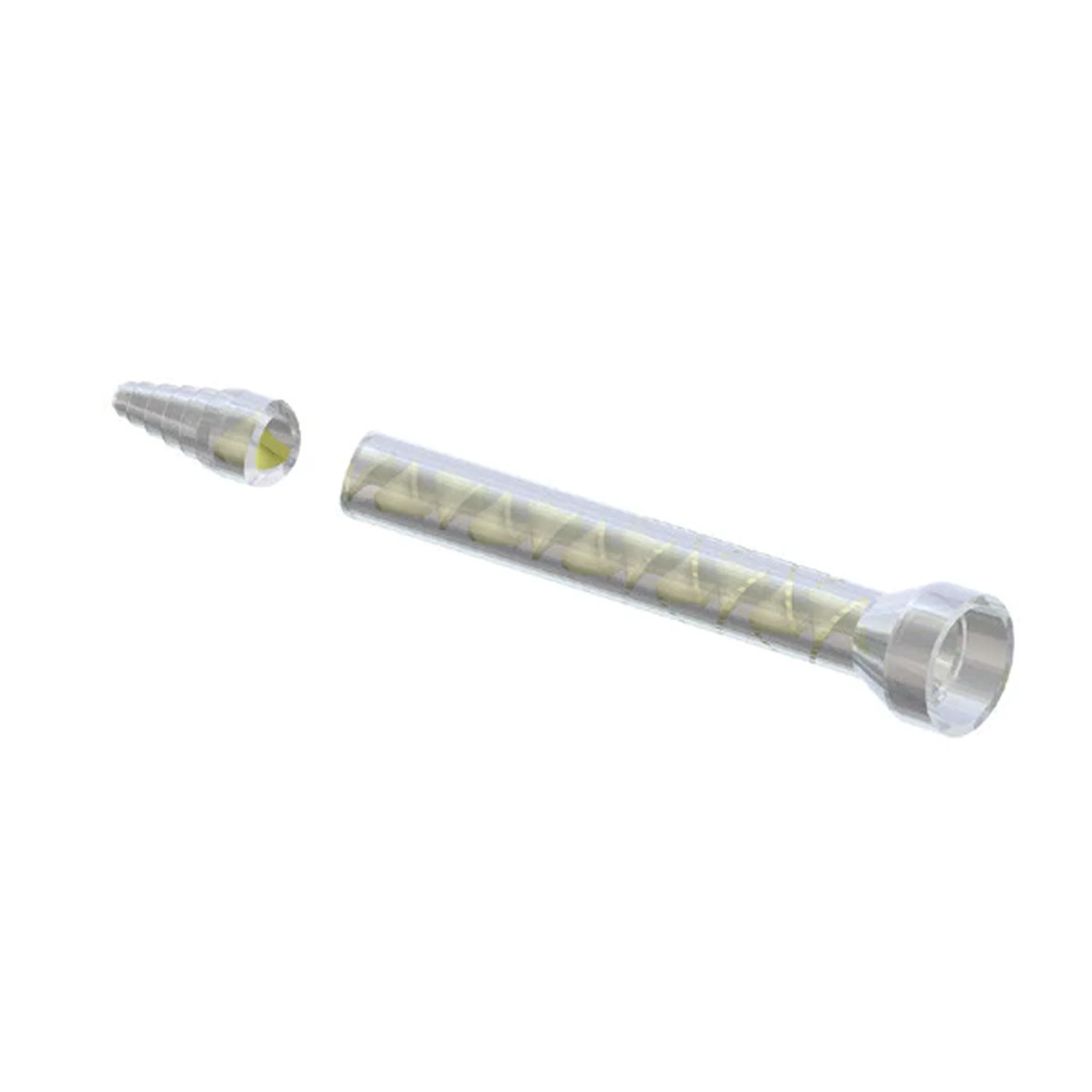

The Infinity Bond MS 08-24T is a disposable static mixer nozzle built for two-part adhesive dispensing through C-System (bell connection) cartridges and compatible Meter Mix Dispense (MMD) equipment. Featuring 24 helical mixing elements, a 0.315 in (8.00 mm) inner diameter, and a total length of 8.78 in (223 mm), this mixer delivers efficient blending and controlled flow. The stepped tip outlet supports 1:1 and 2:1 mix ratios using 50 ml cartridges and larger, making it ideal for epoxies, MMAs, polyurethanes, and silicone-based materials. This model is a compatible alternative to the Sulzer MS 08-24T.
Why Choose the Infinity Bond MS 08-24T Static Mixer
- High-Efficiency Helix Mixing: 24 precisely engineered elements inside an 8.78 in body provide optimal blending of two-part adhesives for consistent performance.
- Trim-to-Size Stepped Tip: The outlet can be cut to control bead size, making this a versatile stepped tip mixer for various application needs.
- Secure Bell Connection: Designed for use with C-System cartridges, the bell interface ensures reliable installation and leak-free dispensing.
- Ideal for High-Viscosity Adhesives: With a 0.315 in inner diameter, this mixer supports smooth flow of thicker chemistries like MMAs and epoxies.
- Supports Multiple Mix Ratios: Compatible with 1:1 and 2:1 adhesives in 50 ml cartridges or larger — perfect for field and shop use.
MS 08-24T Specifications
- Part Number: MS 08-24T
- Mixer Type: Helix
- Connection Type: Bell (C-System)
- Outlet Tip: Stepped
- Compatible Cartridge Sizes: 200 ml, 400 ml, 600 ml
- Mix Ratios: 1:1 and 2:1
- Number of Elements: 24
- Inner Diameter: 0.315 in / 8.00 mm
- Outer Diameter: 0.472 in / 12.00 mm
- Length: 8.78 in / 223 mm
- Outlet Orifice Diameter: 0.094 in / 2.40 mm
- Approx. Retained Volume: 8.5 ml
- System: C-System Cartridges and Meter Mix Dispense (MMD) Equipment
- Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA)
MS 08-24T Machine Mixer – Compatible Equivalent Models
- Sulzer MS 08-24T
