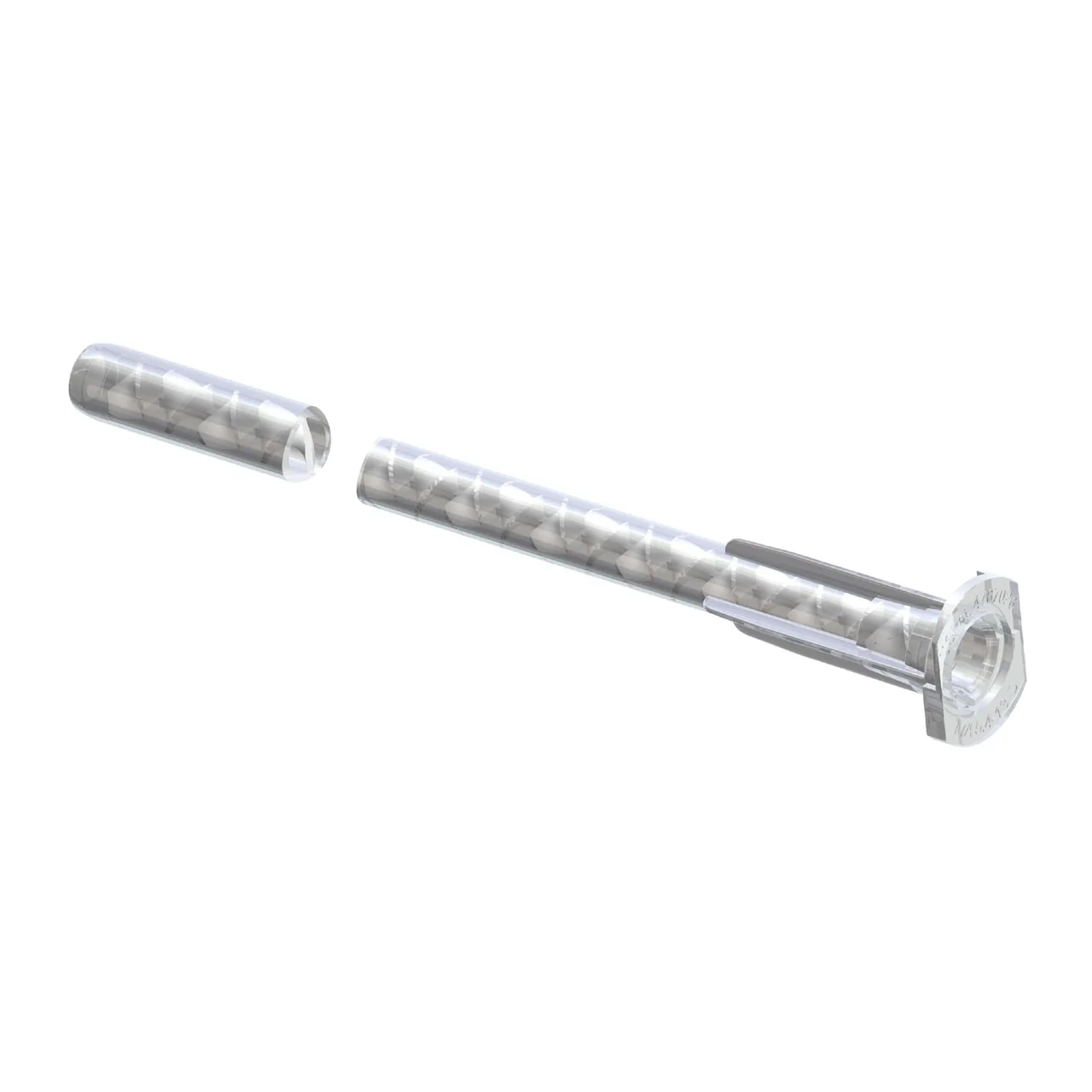

Sulzer MAH 05-13D Static Mixing Nozzle for 1:1/2:1 Mixes

The Sulzer MAH 05-13D is a high-performance static mixing nozzle designed for use with the MIXPAC™ A System. This Helix mixer type features a Bayonet (Twist and Lock) connection and is compatible with 1:1/2:1 50/75 ml cartridges. With 13 elements and an inner diameter of 0.213 in (5.4 mm), this nozzle has a length of 3.11 in (79 mm) and an outlet tip style of Straight Tip. Ideal for applications using MMAs, epoxies, and polyurethanes, the MAH 05-13D ensures efficient mixing with a waste volume of 1.36 ml. Experience superior performance with this clear polypropylene static mixing nozzle.

Advantages of MAH 05-13D Mixing Nozzles

• Efficient Helix Design: Provides optimal mixing performance for two-part adhesives, ensuring consistent results and quality.
• Secure Twist and Lock Fit: Ensures reliable attachment to MIXPAC™ A System cartridges for fast, tool-free setup.
• Compatible with Popular Cartridge Sizes: Works seamlessly with 50 ml and 75 ml cartridges, making it versatile for various applications.
• Precision Outlet Tip: The Straight Tip design allows for accurate dispensing of mixed materials, enhancing application control.
• High Element Count: With 13 elements, this static mixing nozzle guarantees thorough mixing, suitable for a wide range of adhesive chemistries.

Sulzer MAH 05-13D Specifications

• Series: MAH
• Model: MAH 05-13D
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• System: MIXPAC™ A System
• Compatible With: 1:1/2:1 50/75 ml Cartridges
• Number of Elements: 13
• Inner Diameter: 0.213 in / 5.4 mm
• Length: 3.11 in / 79 mm
• Waste Volume: 1.36 ml
• Outlet Tip: Straight Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 7000
