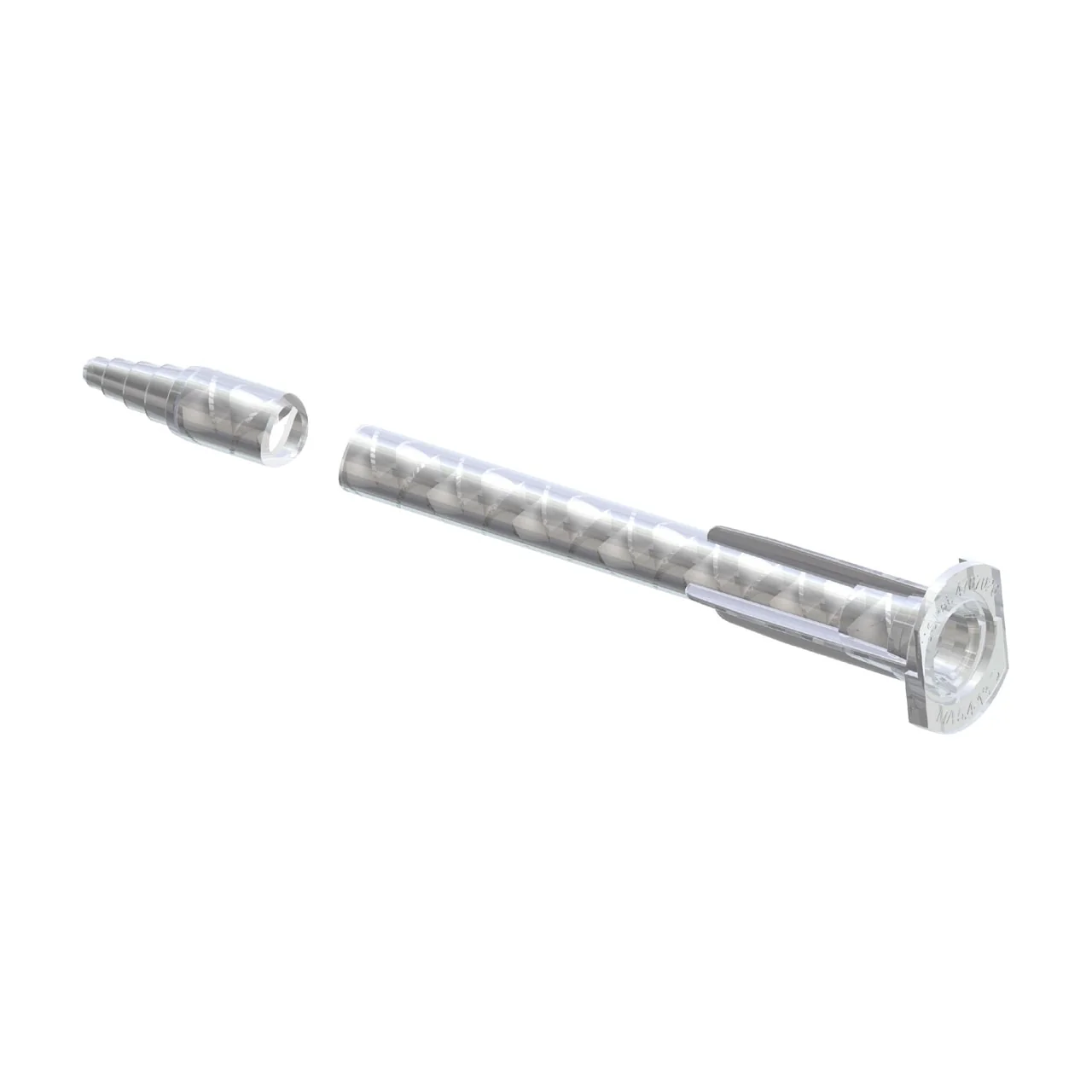

Sulzer MAH 05-17T Static Mixer Nozzle for MIXPAC™ A System

The Sulzer MAH 05-17T static mixer nozzle features a Helix mixer type and a Bayonet (Twist and Lock) connection, designed for use with the MIXPAC™ A System. This nozzle is compatible with 1:1/2:1 mix ratios and 50/75 ml cartridges, ensuring precise mixing for a variety of applications. With 17 elements, an inner diameter of 0.213 in (5.4 mm), and a length of 4.094 in (104 mm), it delivers effective mixing performance. The stepped tip outlet style enhances application versatility, making it suitable for a range of adhesive chemistries including epoxies and polyurethanes. This static mixing nozzle is an ideal choice for professionals seeking reliable and efficient mixing solutions.

Key Features of MAH 05-17T

• Efficient Helix Design: Provides optimal mixing performance for a variety of adhesive formulations.
• Secure Twist and Lock Fit: Ensures reliable attachment to MIXPAC™ A System cartridges for fast, tool-free setup.
• Wide Compatibility: Supports mix ratios of 1:1 and 2:1 with 50 ml and 75 ml cartridges for versatile applications.
• Designed for Precision: Features an inner diameter of 0.213 in (5.4 mm) and a length of 4.094 in (104 mm) to ensure accurate material flow.
• Versatile Outlet Tip: The stepped tip provides enhanced control for various dispensing needs, suitable for adhesive mixing tips.

Sulzer MAH 05-17T Specifications

• Series: MAH
• Model: MAH 05-17T
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• System: MIXPAC™ A System
• Compatible With: 1:1/2:1 50/75 ml Cartridges
• Number of Elements: 17
• Inner Diameter: 0.213 in / 5.4 mm
• Length: 4.094 in / 104 mm
• Waste Volume: 1.68 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 4000
