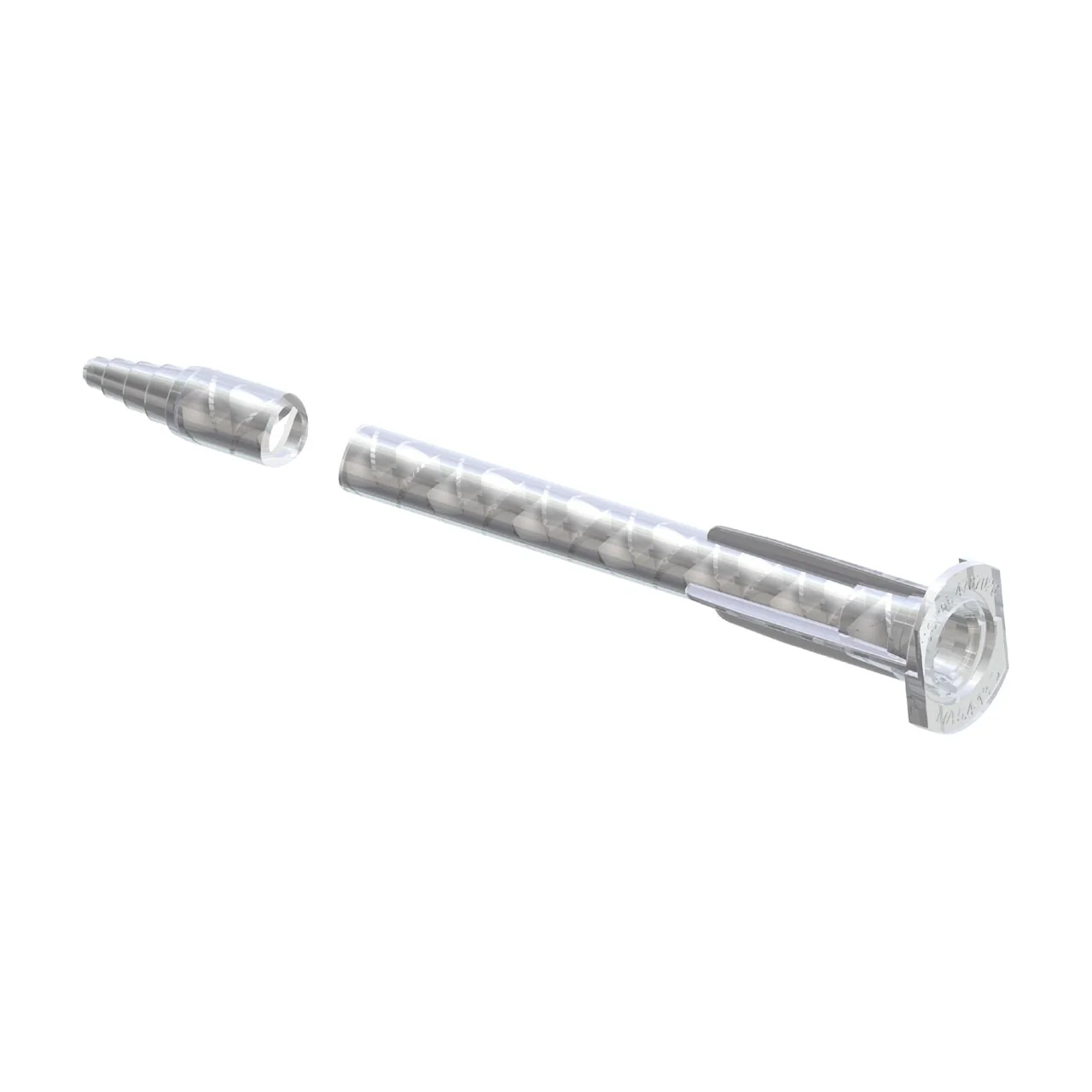

Sulzer MAH 05-21T Static Mixing Nozzle - Helix Mixer for 50/75 ml Cartridges

The Sulzer MAH 05-21T static mixing nozzle features a Helix mixer type and a Bayonet (Twist and Lock) connection, designed for use with the MIXPAC™ A System. This nozzle supports mix ratios of 1:1 and 2:1, and is compatible with 50/75 ml cartridges. With 21 elements, an inner diameter of 0.213 in (5.4 mm), and a length of 4.882 in (124 mm), it utilizes a stepped outlet tip style, making it an excellent choice for precise mixing of two-part adhesives such as epoxies, MMAs, and polyurethanes. This product is a part of Sulzer's high-quality mixing nozzles that ensure efficient and accurate application.

Advantages of MAH 05-21T Mixing Nozzles

• Secure Twist and Lock Fit: Ensures reliable attachment to MIXPAC™ A System cartridges for fast, tool-free setup.
• Efficient Helix Design: Optimized for thorough mixing of two-component adhesives like epoxies and polyurethanes, enhancing performance.
• Versatile Compatibility: Suitable for 50/75 ml cartridges and supports 1:1 and 2:1 mix ratios, providing flexibility for various applications.
• Low Waste Volume: Features a waste volume of only 2.01 ml, minimizing material waste and maximizing efficiency.
• Clear Polypropylene Construction: Made from durable polypropylene (PP), allowing for visual inspection of mixed materials during application.

Sulzer MAH 05-21T Specifications

• Series: MAH
• Model: MAH 05-21T
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• System: MIXPAC™ A System
• Compatible With: 1:1/2:1 50/75 ml Cartridges
• Number of Elements: 21
• Inner Diameter: 0.213 in / 5.4 mm
• Length: 4.882 in / 124 mm
• Waste Volume: 2.01 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 3000
