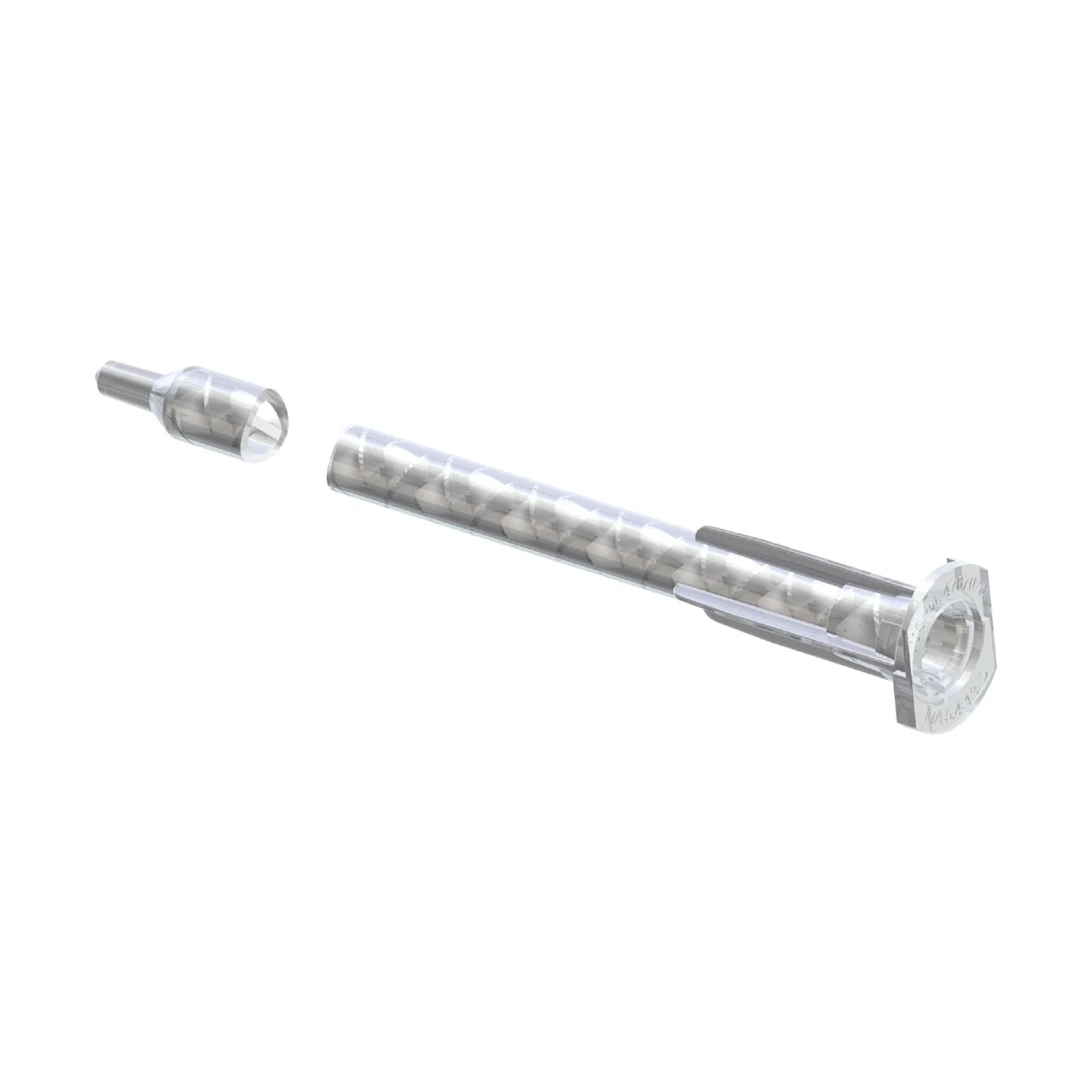

Sulzer MAH 06-21L Static Mixing Nozzle - Helix Design for MIXPAC™ A System

The Sulzer MAH 06-21L static mixing nozzle features a Helix mixer type and a Bayonet (Twist and Lock) connection, designed for use with the MIXPAC™ A System. It supports mix ratios of 1:1 and 2:1 and is compatible with 50 ml and 75 ml cartridges. This nozzle includes 21 elements, with an inner diameter of 0.248 in (6.3 mm) and a length of 5.945 in (151 mm). The outlet tip is a luer slip tip, ideal for precise application of adhesives such as MMAs, epoxies, and polyurethanes. With its clear polypropylene construction, this static mixing nozzle is both durable and effective, making it a reliable choice for various mixing applications.

Key Features of MAH 06-21L

• Efficient Helix Mixer Design: Facilitates thorough mixing of two-component adhesives, ensuring optimal performance and consistency.
• Compatible with MIXPAC™ A System: Seamlessly integrates with 50 ml and 75 ml cartridges, providing versatility for a range of applications.
• Secure Bayonet Connection: The Twist and Lock feature ensures a secure fit, allowing for quick and reliable assembly without tools.
• Precision Luer Slip Outlet Tip: Designed for accurate dispensing, enhancing control during application of adhesives.
• High Element Count: With 21 mixing elements, this nozzle maximizes mixing efficiency, ideal for high-viscosity materials.

Sulzer MAH 06-21L Specifications

• Series: MAH
• Model: MAH 06-21L
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• System: MIXPAC™ A System
• Compatible With: 1:1/2:1 50/75 ml Cartridges
• Number of Elements: 21
• Inner Diameter: 0.248 in / 6.3 mm
• Length: 5.945 in / 151 mm
• Waste Volume: 3.33 ml
• Outlet Tip: Luer Slip Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 4000
