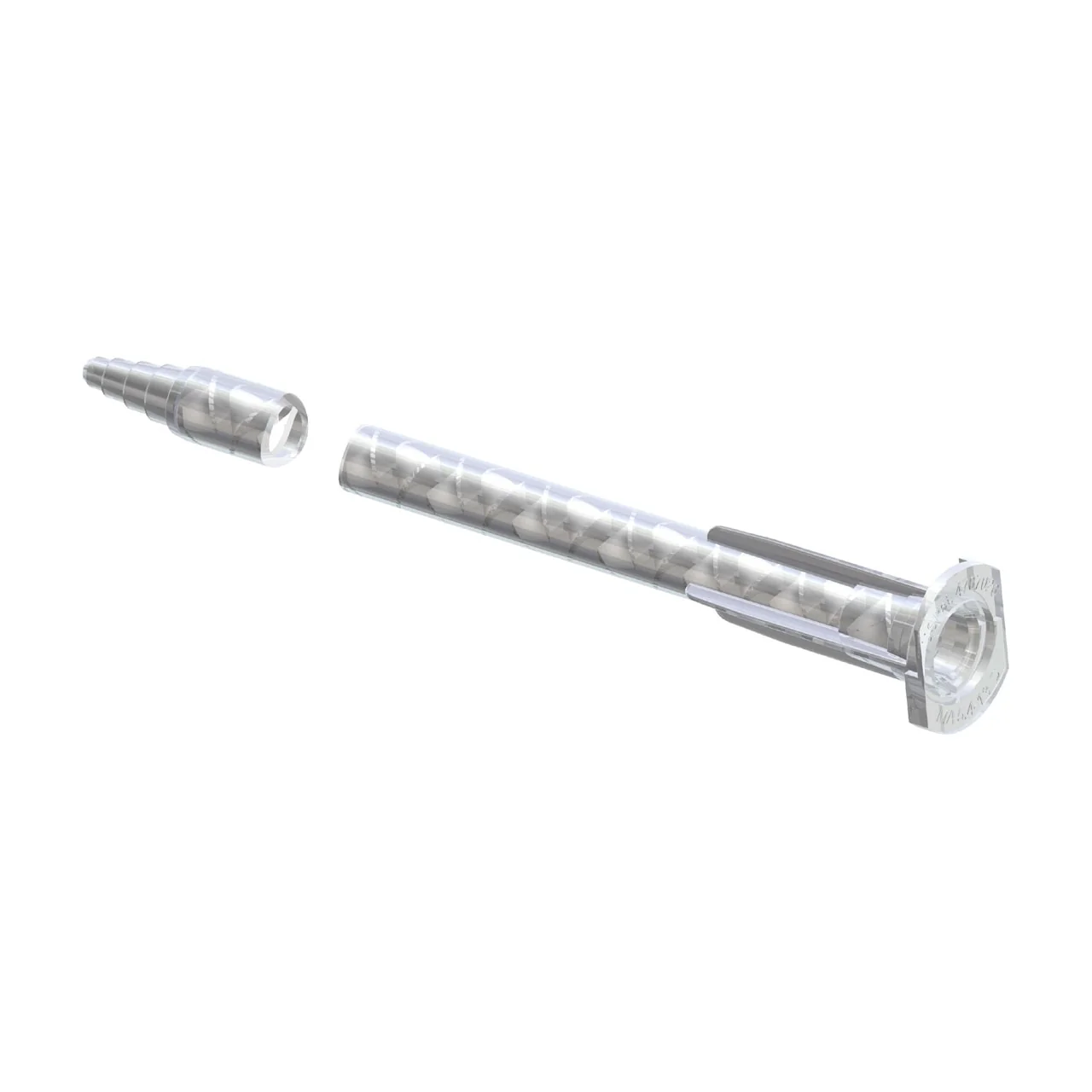

Sulzer MAH 06-21T Helix Static Mixing Nozzle for MIXPAC™ A System

The Sulzer MAH 06-21T is a high-performance static mixing nozzle designed for use with the MIXPAC™ A System. This Helix mixer features a bayonet (twist and lock) connection, compatible with 1:1 and 2:1 mix ratios for 50/75 ml cartridges. With 21 elements, an inner diameter of 0.248 in (6.3 mm), and a length of 6.024 in (153 mm), it ensures efficient mixing for a variety of adhesive chemistries including MMAs, epoxies, and polyurethanes. The stepped tip outlet provides precise dispensing, making it an ideal choice for professionals seeking reliable static mixing nozzles.

Key Features of MAH 06-21T

• Efficient Helix Design: Ensures thorough mixing of two-part adhesives for optimal performance.
• Bayonet Connection: Features a secure twist and lock fit for quick and easy attachment to MIXPAC™ A System cartridges.
• Compatible with Multiple Ratios: Supports 1:1 and 2:1 mix ratios, enhancing versatility with 50/75 ml cartridges.
• Precision Outlet Tip: Stepped tip design allows for accurate dispensing, minimizing waste and mess.
• Durable Materials: Constructed from polypropylene (PP) for longevity and compatibility with various adhesive mixing tips.

Sulzer MAH 06-21T Specifications

• Series: MAH
• Model: MAH 06-21T
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• System: MIXPAC™ A System
• Compatible With: 1:1/2:1 50/75 ml Cartridges
• Number of Elements: 21
• Inner Diameter: 0.248 in / 6.3 mm
• Length: 6.024 in / 153 mm
• Waste Volume: 3.57 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 2500
