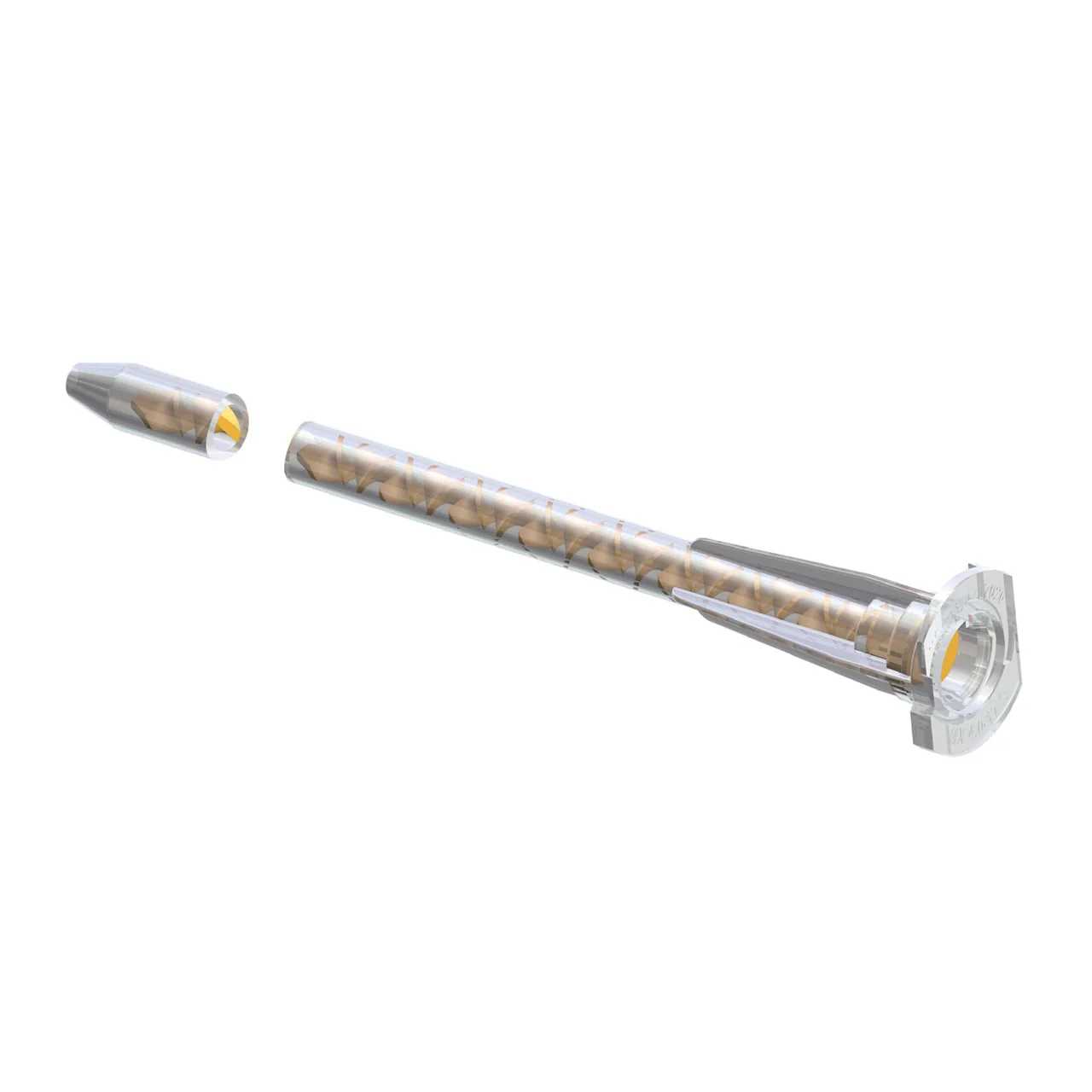

Sulzer MAHX 04-17S Helix Static Mixing Nozzle for MIXPAC™ A System

The Sulzer MAHX 04-17S is a high-performance static mixing nozzle designed to work seamlessly with the MIXPAC™ A System. Featuring a helix mixer type and a convenient bayonet (twist and lock) connection, this static mixing nozzle is compatible with 4:1 and 10:1 mix ratios for 50 ml and 75 ml cartridges. With 17 elements for effective mixing, an inner diameter of 0.157 in (4.0 mm), and a length of 3.213 in (81.6 mm), the MAHX 04-17S is engineered for precision. The tapered outlet tip ensures optimal dispensing of a variety of adhesive chemistries, including epoxies and polyurethanes. Whether you need reliable adhesive mixing nozzles or static mixing tips, the Sulzer MAHX 04-17S delivers exceptional performance.

Key Features of MAHX 04-17S

• Efficient Helix Design: Ensures thorough mixing of two-part adhesives, enhancing the quality and consistency of your applications.
• Secure Bayonet Connection: Provides a reliable twist and lock fit for fast cartridge attachment, streamlining the mixing process.
• Versatile Compatibility: Supports 4:1 and 10:1 mix ratios for 50 ml and 75 ml cartridges, making it suitable for a wide range of projects.
• Precision Dimensions: With an inner diameter of 0.157 in (4.0 mm) and a length of 3.213 in (81.6 mm), it is designed for optimal flow and mixing efficiency.
• Tapered Outlet Tip: Allows for controlled dispensing, ideal for precise application of adhesives and other materials.

Sulzer MAHX 04-17S Specifications

• Series: MAHX
• Model: MAHX 04-17S
• Mixer Type: Helix
• Connection Type: Bayonet (Twist and Lock)
• System: MIXPAC™ A System
• Compatible With: 4:1/10:1 50/75 ml Cartridges
• Number of Elements: 17
• Inner Diameter: 0.157 in / 4.0 mm
• Length: 3.213 in / 81.6 mm
• Waste Volume: 0.75 ml
• Outlet Tip: Tapered Tip
• Color: Orange
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 7500
