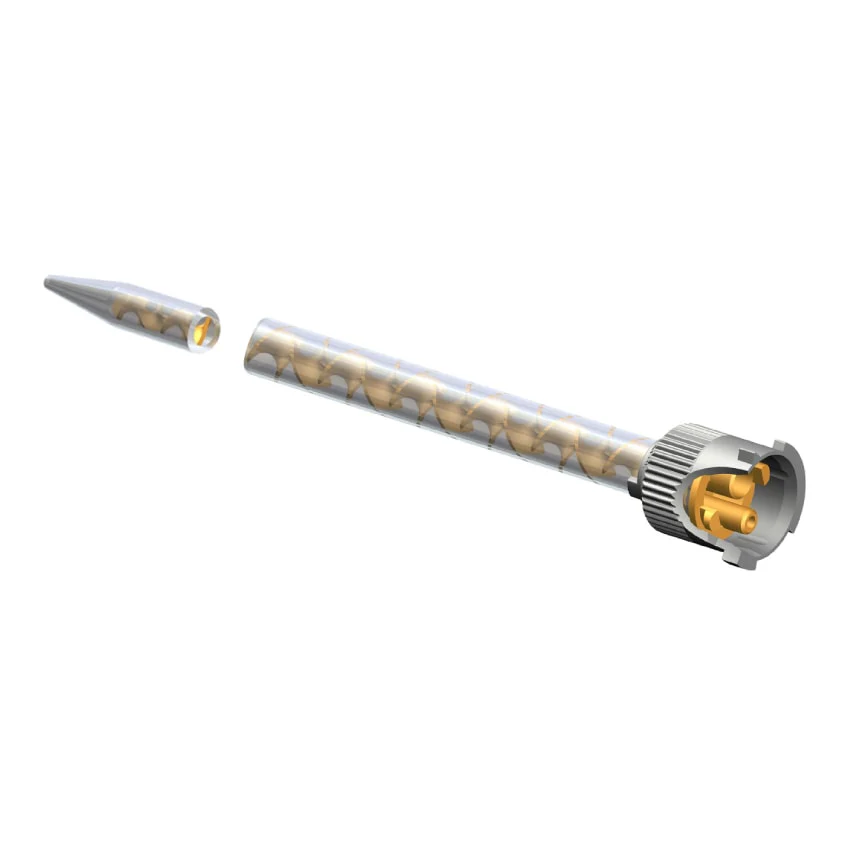

Sulzer MBHX 03-16S Static Mixer Nozzle - Helix Design, Twist and Lock

The Sulzer MBHX 03-16S static mixer nozzle features a Helix design and a Twist and Lock connection, making it ideal for use with the MIXPAC™ B System. This static mixing nozzle is compatible with 4:1/10:1 50/75 ml cartridges and boasts 16 elements, ensuring effective mixing of various adhesive chemistries including MMAs and epoxies. With an inner diameter of 0.126 in (3.2 mm), a length of 3.031 in (77 mm), and a tapered outlet tip, this nozzle is optimized for precision and minimal waste, with a waste volume of just 0.60 ml. The vibrant orange color and robust materials make it a reliable choice for high-performance applications.

Advantages of MBHX 03-16S Mixing Nozzles

• Secure Twist and Lock Fit: Ensures reliable attachment to MIXPAC™ B System cartridges for fast, tool-free setup.
• Helix Mixer Type: Provides superior mixing performance, ideal for two-part adhesives such as epoxies and polyurethanes.
• Optimized Length and Diameter: With an inner diameter of 0.126 in (3.2 mm) and a length of 3.031 in (77 mm), it balances flow and mixing efficiency.
• Tapered Outlet Tip: Facilitates precise application, minimizing waste and ensuring accurate dispensing.
• High Element Count: The 16-element design maximizes mixing effectiveness, making it perfect for static mixing tips.

Sulzer MBHX 03-16S Specifications

• Series: MBHX
• Model: MBHX 03-16S
• Mixer Type: Helix
• Connection Type: Twist and Lock
• System: MIXPAC™ B System
• Compatible With: 4:1/10:1 50/75 ml Cartridges
• Number of Elements: 16
• Inner Diameter: 0.126 in / 3.2 mm
• Length: 3.031 in / 77 mm
• Waste Volume: 0.60 ml
• Outlet Tip: Tapered Tip
• Color: Orange
• Element Material: Acetalcopolymere
• Housing Material: Polypropylene (PP)
• Units/Box: 7000
