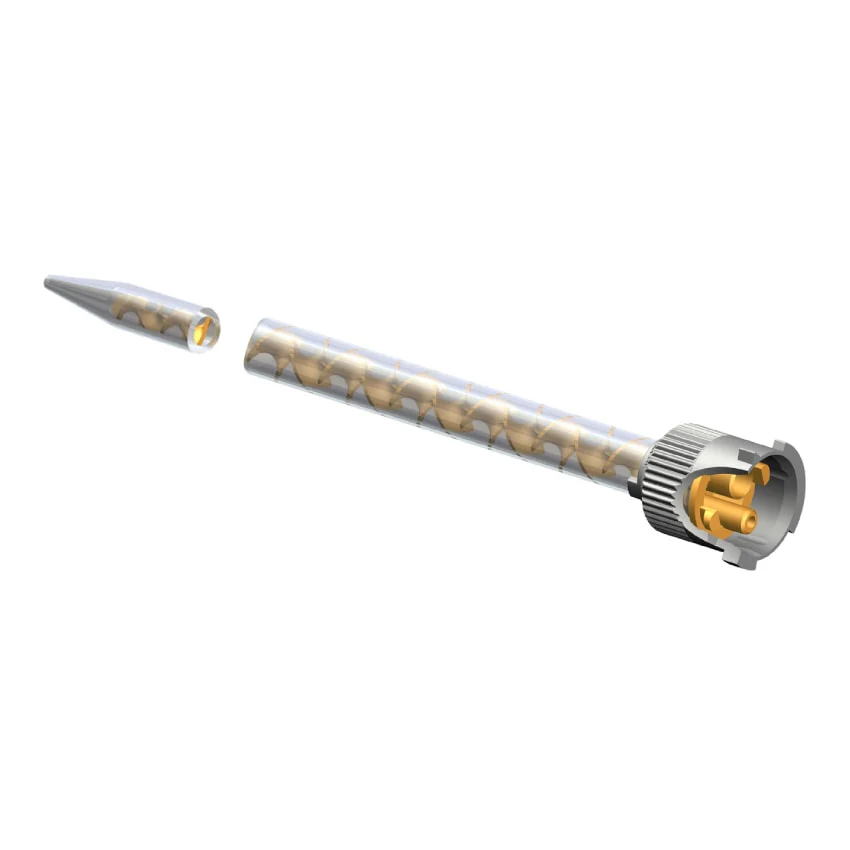

Sulzer MBHX 04-16S Static Mixing Nozzle - Helix Design

The Sulzer MBHX 04-16S static mixing nozzle features a Helix mixer type and a secure Twist and Lock connection. Designed for compatibility with the MIXPAC™ B System, this nozzle supports mix ratios of 4:1 and 10:1 for 50 ml and 75 ml cartridges. With 16 mixing elements, an inner diameter of 0.165 in (4.2 mm), and a length of 3.78 in (96 mm), it also includes a tapered outlet tip. Engineered for use with various adhesive chemistries, including MMAs, epoxies, and polyurethanes, the MBHX 04-16S is an ideal choice for precise mixing applications. This static mixing nozzle is a reliable solution for both professionals and technical users requiring high-quality mixing nozzles.

Key Features of MBHX 04-16S

• Secure Twist and Lock Fit: Ensures reliable attachment to MIXPAC™ B System cartridges for fast, tool-free setup.
• Efficient Helix Mixer Design: Facilitates thorough mixing of adhesives and other materials, enhancing performance and consistency.
• Versatile Compatibility: Supports mix ratios of 4:1 and 10:1 with 50 ml and 75 ml cartridges, making it adaptable for various applications.
• Precision Dimensions: Features an inner diameter of 0.165 in (4.2 mm) and a length of 3.78 in (96 mm), ideal for controlled dispensing.
• Tapered Outlet Tip: The tapered tip design allows for precise application of mixed materials, reducing waste and improving accuracy.

Sulzer MBHX 04-16S Specifications

• Series: MBHX
• Model: MBHX 04-16S
• Mixer Type: Helix
• Connection Type: Twist and Lock
• System: MIXPAC™ B System
• Compatible With: 4:1/10:1 50/75 ml Cartridges
• Number of Elements: 16
• Inner Diameter: 0.165 in / 4.2 mm
• Length: 3.78 in / 96 mm
• Waste Volume: 1.05 ml
• Outlet Tip: Tapered Tip
• Color: Orange
• Element Material: Acetalcopolymere
• Housing Material: Polypropylene (PP)
• Units/Box: 5000
