Sulzer MCH 08-24T Static Mixer Nozzle for 200/400 ml Cartridges

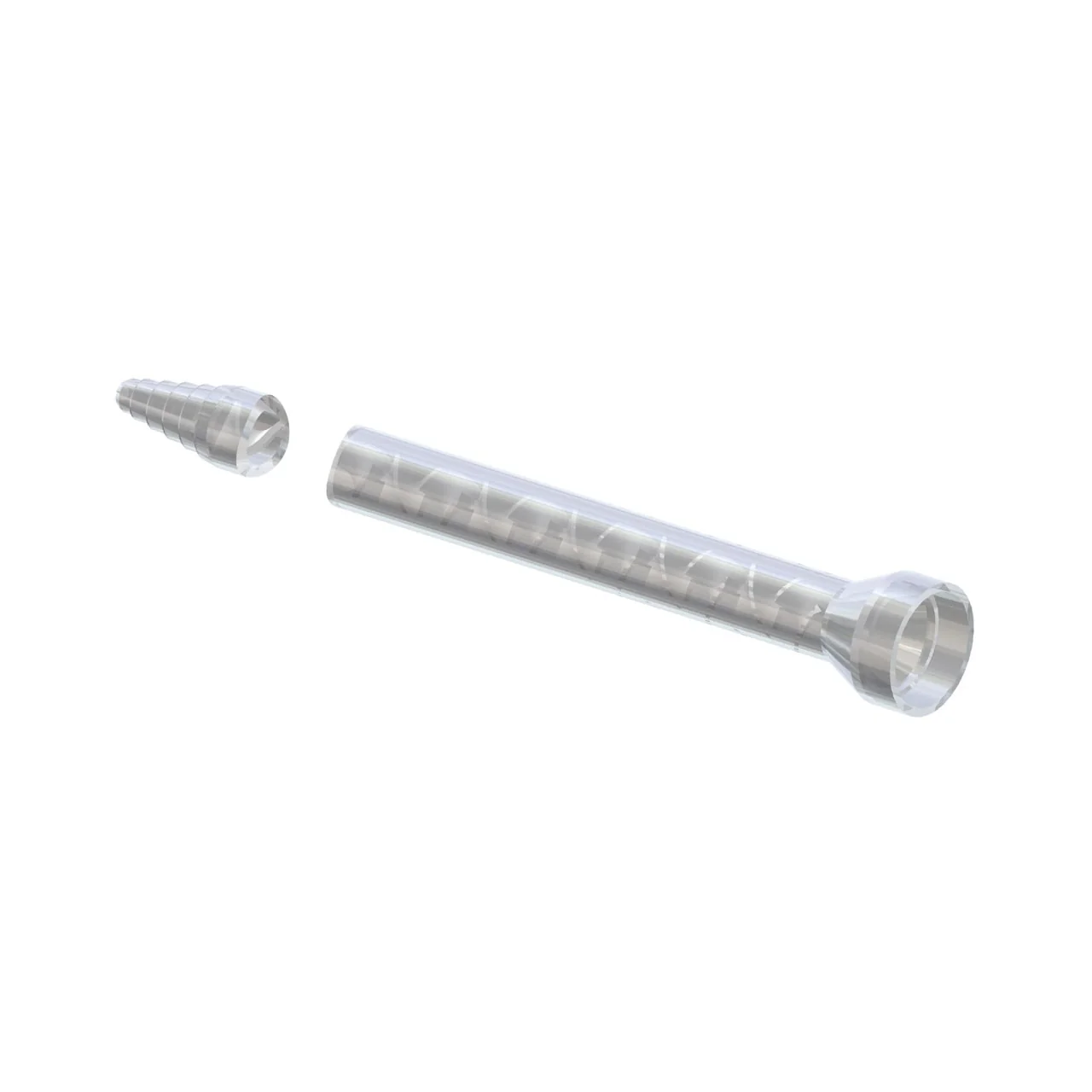

The Sulzer MCH 08-24T static mixing nozzle features a Helix mixer type and a Bell connection type, optimized for use with the MIXPAC™ C System. This nozzle supports mix ratios of 1:1 and 2:1 and is compatible with 200/400 ml cartridges. With 24 elements, an inner diameter of 0.315 in (8.0 mm), and a length of 8.858 in (225 mm), it provides efficient mixing for various adhesive chemistries including MMAs, epoxies, and polyurethanes. The stepped tip design enhances precision in application, making it an ideal choice for professionals seeking reliable static mixing nozzles.

MCH 08-24T Features and Benefits

• Efficient Helix Mixing Design: Ensures thorough mixing of two-part adhesives for optimal performance.
• Compatible with MIXPAC™ C System: Designed for seamless integration with 200/400 ml cartridges, enhancing versatility.
• Stepped Outlet Tip: Provides precise control over the dispensing of mixed materials, reducing waste and improving application accuracy.
• Durable Polypropylene Construction: Offers resistance to chemicals and ensures reliability in demanding applications.
• Optimal Dimensions: With a length of 8.858 in (225 mm) and an inner diameter of 0.315 in (8.0 mm), it maximizes mixing efficiency while maintaining ease of use.

Sulzer MCH 08-24T Specifications

• Series: MCH
• Model: MCH 08-24T
• Mixer Type: Helix
• Connection Type: Bell
• System: MIXPAC™ C System
• Compatible With: 1:1/2:1 200/400 ml Cartridges
• Number of Elements: 24
• Inner Diameter: 0.315 in / 8.0 mm
• Length: 8.858 in / 225 mm
• Waste Volume: 8.50 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 1500
• Accessories: LA 06-08
