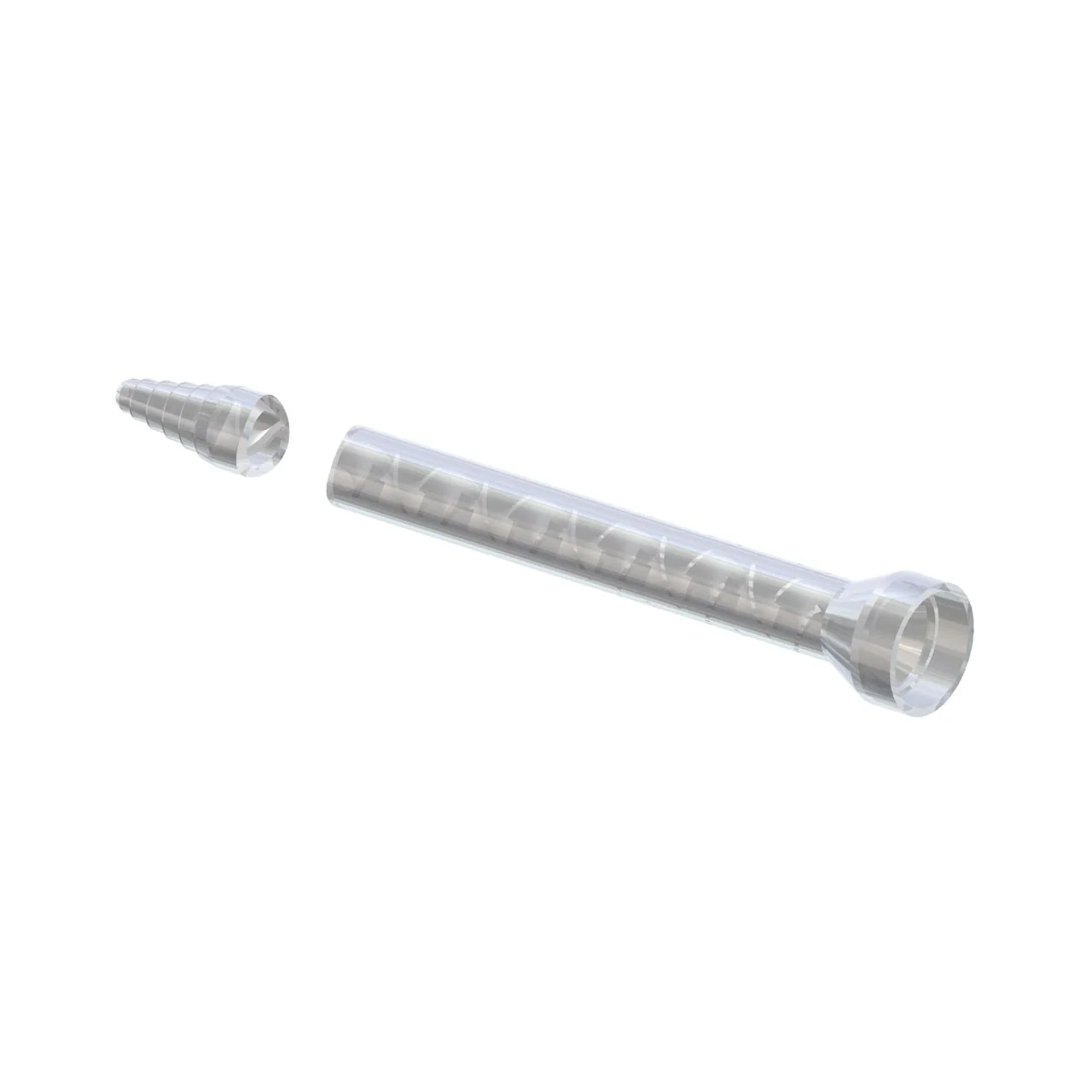

Sulzer MCH 08-32T Static Mixing Nozzle for 1:1/2:1 Cartridges

The Sulzer MCH 08-32T static mixing nozzle is designed with a Helix mixer type and a Bell connection type, making it ideal for use with the MIXPAC™ C System. This nozzle supports mix ratios of 1:1 and 2:1, compatible with 200/400 ml cartridges. Featuring 32 elements, an inner diameter of 0.315 in (8.0 mm), and a length of 11.299 in (287 mm), it includes a stepped outlet tip. Suitable for various adhesive chemistries such as epoxies and polyurethanes, this clear polypropylene nozzle ensures efficient mixing for high-performance applications. Enhance your mixing process with reliable Sulzer mixing nozzles.

Key Features of MCH 08-32T

• Efficient Helix Design: Provides superior mixing performance for consistent adhesive application.
• Compatible with MIXPAC™ C System: Ensures seamless integration with 200/400 ml cartridges for versatile use.
• Stepped Tip Outlet: Facilitates precise material dispensing, enhancing control during application.
• Optimal Inner Diameter: With an inner diameter of 0.315 in (8.0 mm), it supports a range of adhesive viscosities.
• High Element Count: 32 elements ensure thorough mixing, making it ideal for two-part adhesives like epoxies and polyurethanes.

Sulzer MCH 08-32T Specifications

• Series: MCH
• Model: MCH 08-32T
• Mixer Type: Helix
• Connection Type: Bell
• System: MIXPAC™ C System
• Compatible With: 1:1/2:1 200/400 ml Cartridges
• Number of Elements: 32
• Inner Diameter: 0.315 in / 8.0 mm
• Length: 11.299 in / 287 mm
• Waste Volume: 10.90 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 1200
