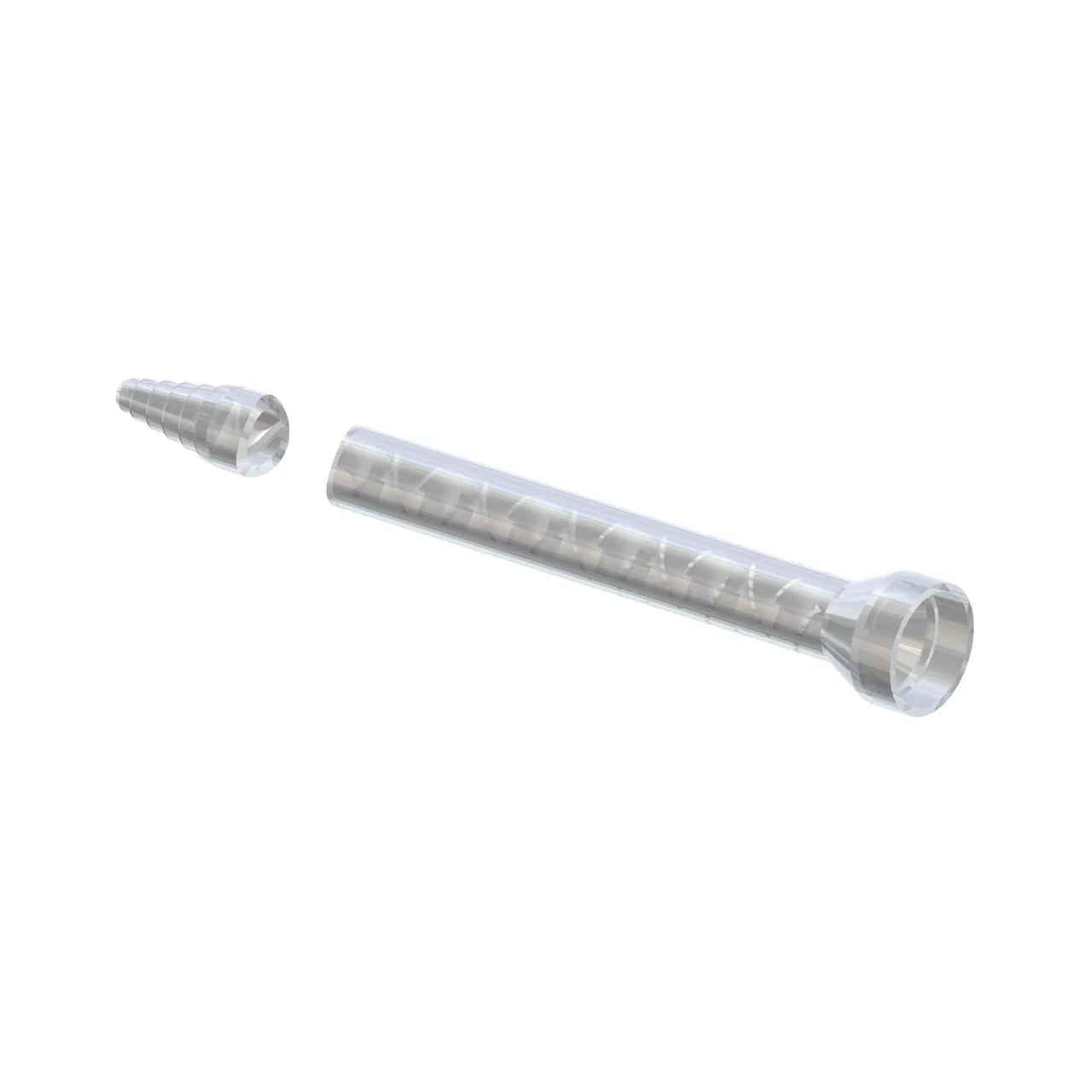

Sulzer MCH 10-24T Static Mixer Nozzle – Helix Design for 1:1/2:1 Systems

The Sulzer MCH 10-24T static mixing nozzle features a Helix design and a Bell connection type, making it an ideal choice for use with the MIXPAC™ C System. It is compatible with 1:1 and 2:1 mix ratios for 200 and 400 ml cartridges, ensuring efficient mixing for a variety of applications. With 24 mixing elements, an inner diameter of 0.394 in (10.0 mm), and a length of 10.906 in (277 mm), this nozzle provides optimal performance. The stepped outlet tip and clear color allow for easy monitoring of material flow, making it suitable for use with MMAs, epoxies, and polyurethanes. Enhance your mixing process with this high-quality static mixing nozzle, a reliable choice for professional applications.

MCH 10-24T Features and Benefits

• Efficient Helix Mixing Type: Designed to achieve a thorough and uniform mix, ensuring high-quality outputs with every use.
• Compatible with MIXPAC™ C System: Seamlessly integrates with 200/400 ml cartridges for versatile applications in adhesive mixing.
• Stepped Outlet Tip: Facilitates precise dispensing, making it ideal for a variety of static mixing applications.
• Durable Polypropylene Construction: Both the element and housing materials are made of polypropylene (PP), ensuring durability and chemical resistance.
• Optimal Dimensions: With an inner diameter of 0.394 in (10.0 mm) and a length of 10.906 in (277 mm), this nozzle is engineered for effective mixing.

Sulzer MCH 10-24T Specifications

• Series: MCH
• Model: MCH 10-24T
• Mixer Type: Helix
• Connection Type: Bell
• System: MIXPAC™ C System
• Compatible With: 1:1/2:1 200/400 ml Cartridges
• Number of Elements: 24
• Inner Diameter: 0.394 in / 10.0 mm
• Length: 10.906 in / 277 mm
• Waste Volume: 14.60 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 1000
• Accessories: LA 10-00
