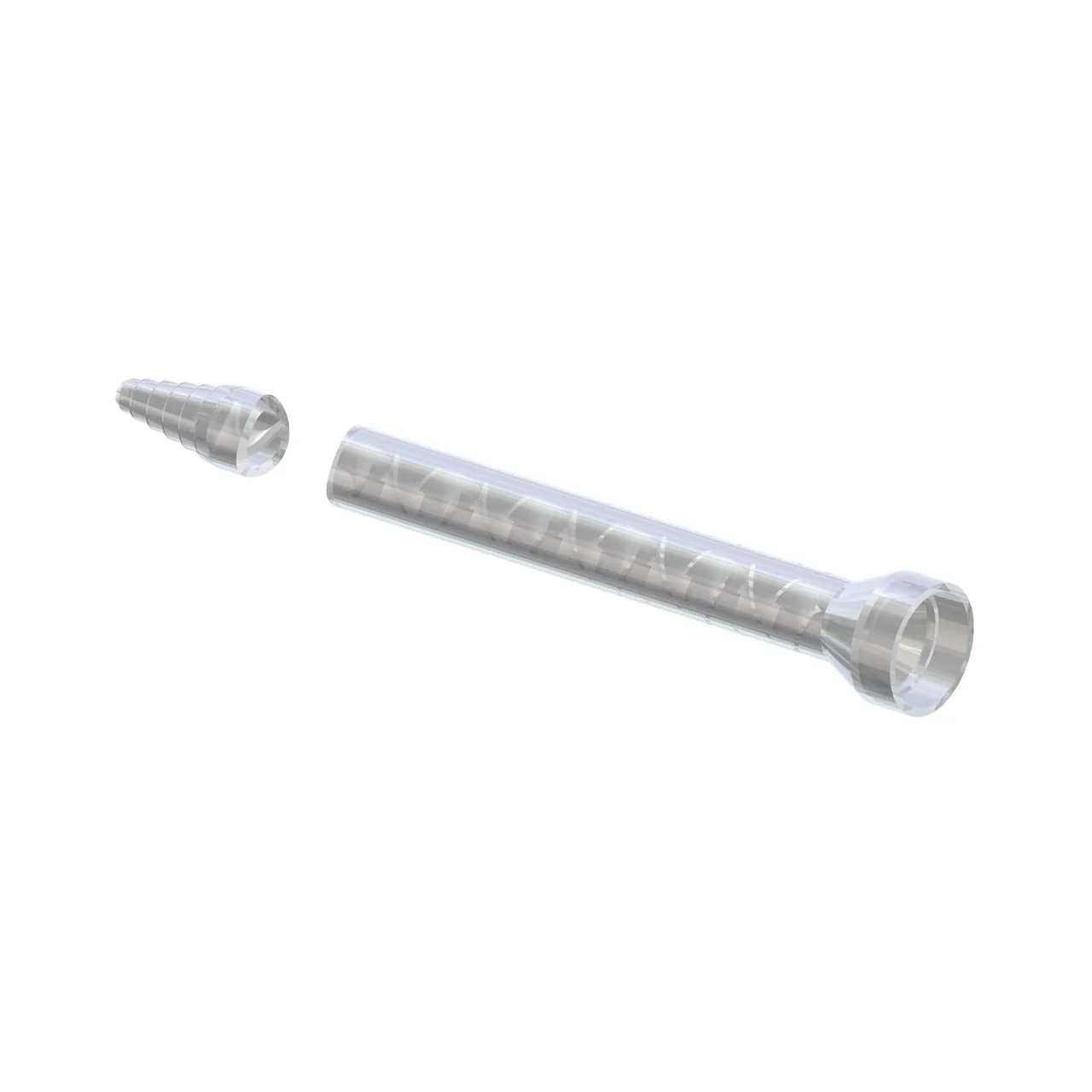

Sulzer MCH 13-12T Static Mixing Nozzle for MIXPAC™ C System

The Sulzer MCH 13-12T static mixing nozzle features a Helix mixer type and a Bell connection type, making it compatible with the MIXPAC™ C System. This nozzle supports mix ratios of 1:1 and 2:1 for 200/400 ml cartridges. With 13 elements, an inner diameter of 0.394 in (10.0 mm), and a length of 6.693 in (170 mm), it utilizes a stepped tip outlet for precise application. Ideal for use with a variety of adhesive chemistries, including MMAs, epoxies, and polyurethanes, this static mixing nozzle is a reliable choice for all your mixing needs.

Key Features of MCH 13-12T

• Versatile Helix Design: Provides efficient mixing, ensuring a homogenous blend of materials for optimal performance with static mixing nozzles.
• Compatible with MIXPAC™ C System: Seamlessly integrates with 200/400 ml cartridges for a wide range of applications.
• Stepped Tip Outlet: Allows for controlled dispensing, making it suitable for intricate applications requiring precision.
• Robust Polypropylene Construction: Ensures durability and resistance to chemicals, ideal for use with various adhesives including epoxies and polyurethanes.
• Efficient 13 Element Configuration: Maximizes mixing efficiency while minimizing waste volume of 14.70 ml.

Sulzer MCH 13-12T Specifications

• Series: MCH
• Model: MCH 13-12T
• Mixer Type: Helix
• Connection Type: Bell
• System: MIXPAC™ C System
• Compatible With: 1:1/2:1 200/400 ml Cartridges
• Number of Elements: 13
• Inner Diameter: 0.394 in / 10.0 mm
• Length: 6.693 in / 170 mm
• Waste Volume: 14.70 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 1400
