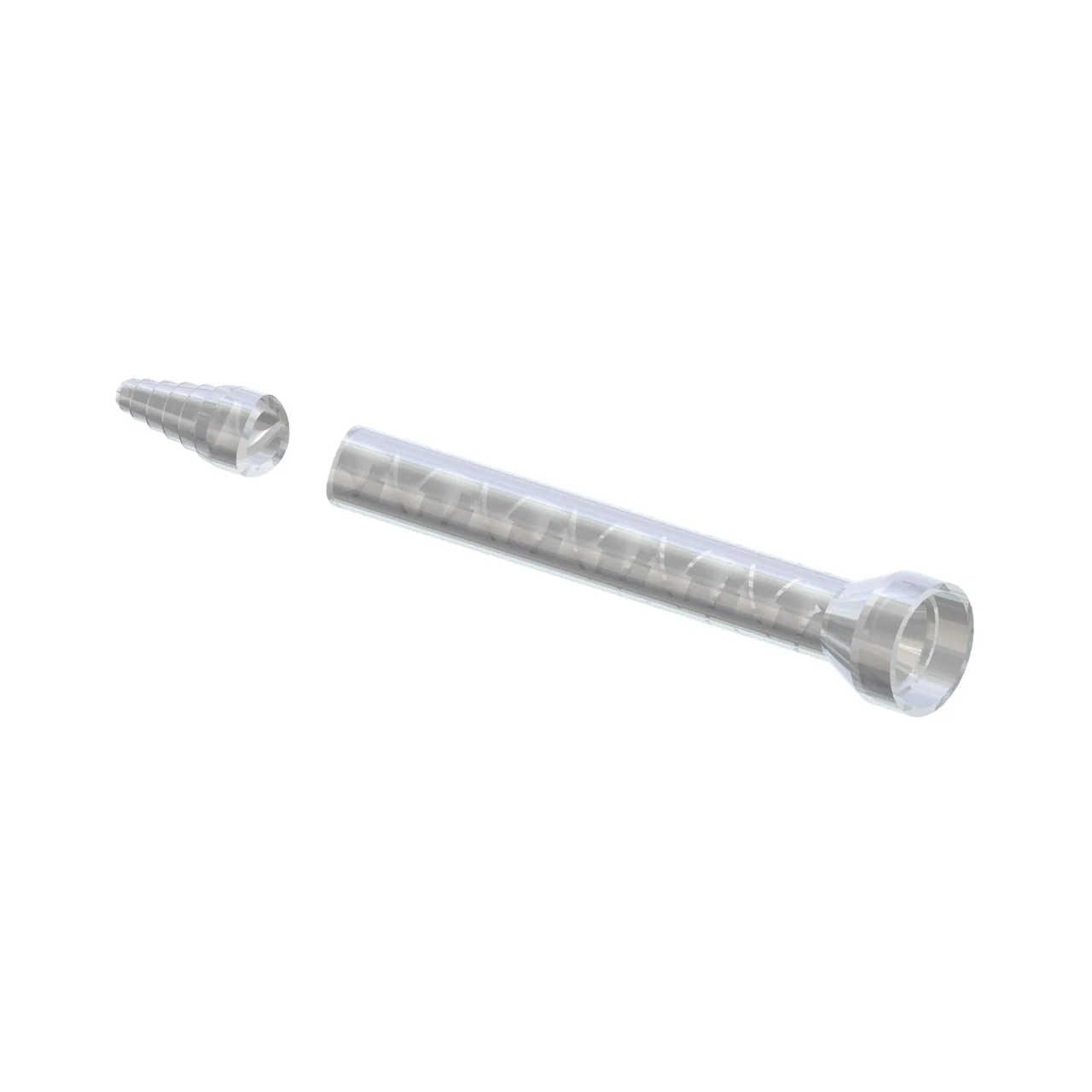

Sulzer MCH 13-32T Static Mixing Nozzle for 1:1/2:1 Cartridges

The Sulzer MCH 13-32T is a high-performance static mixing nozzle designed for optimal mixing of two-part adhesives. This Helix mixer features a Bell connection type and is compatible with the MIXPAC™ C System, supporting mix ratios of 1:1 and 2:1 for 200/400 ml cartridges. With 32 mixing elements, an inner diameter of 0.512 in (13.0 mm), and a length of 14.921 in (379 mm), this nozzle ensures thorough mixing. The stepped outlet tip is ideal for precise application, making it a reliable choice for various adhesive chemistries including MMAs, epoxies, and polyurethanes.

MCH 13-32T Features and Benefits

• Efficient Helix Mixing Design: Provides superior mixing performance by effectively blending two-part materials for consistent results.
• Compatible with MIXPAC™ C System: Seamlessly attaches to 200/400 ml cartridges, ensuring quick setup and easy use with various adhesive formulations.
• Optimal Inner Diameter: At 0.512 in (13.0 mm), it allows for optimal flow of materials, enhancing the efficiency of application.
• Stepped Tip Design: The stepped outlet tip enables precise dispensing, making it an excellent choice for intricate applications.
• High Element Count: With 32 mixing elements, this nozzle maximizes mixing efficiency, suitable for a wide range of adhesives including epoxies and polyurethanes.

Sulzer MCH 13-32T Specifications

• Series: MCH
• Model: MCH 13-32T
• Mixer Type: Helix
• Connection Type: Bell
• System: MIXPAC™ C System
• Compatible With: 1:1/2:1 200/400 ml Cartridges
• Number of Elements: 32
• Inner Diameter: 0.512 in / 13.0 mm
• Length: 14.921 in / 379 mm
• Waste Volume: 25.70 ml
• Outlet Tip: Stepped Tip
• Color: Clear
• Element Material: Polypropylene (PP)
• Housing Material: Polypropylene (PP)
• Units/Box: 600
