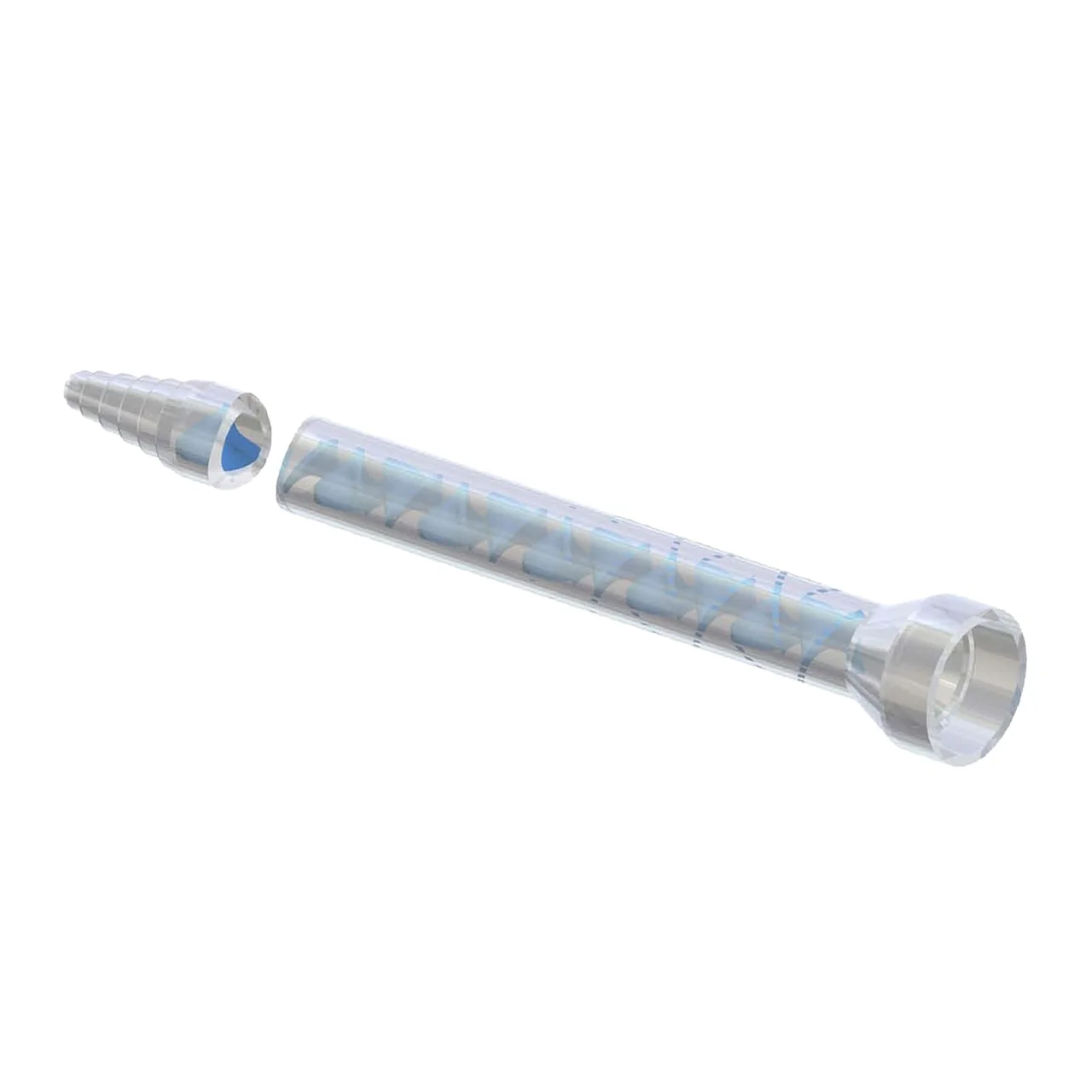

Sulzer ME 08-32T Static Mixing Nozzle for Meter Mix Dispense

The Sulzer ME 08-32T is a high-performance static mixing nozzle featuring a Helix mixer type and a Bell connection type, designed for use with Meter Mix Dispense (MMD) equipment. This nozzle is compatible with two-component products and supports mix ratios of 1:1 and 2:1 for cartridge sizes of 50 ml and 400 ml. With 32 elements and an inner diameter of 0.625 in (15.9 mm), this mixing nozzle measures 11.299 in (287 mm) in length and features a stepped outlet tip. Ideal for adhesives such as MMAs, epoxies, and polyurethanes, the Sulzer ME 08-32T is a reliable choice for precision mixing applications.

Key Features of ME 08-32T

• Advanced Helix Design: Promotes thorough mixing of two-part adhesives for optimal results.
• Versatile Bell Connection: Ensures secure attachment to various Meter Mix Dispense systems for seamless operation.
• Compatible with Multiple Mix Ratios: Supports 1:1 and 2:1 mixing for enhanced flexibility with cartridge sizes of 50 ml and 400 ml.
• Precision Outlet Tip: Stepped tip design allows for controlled dispensing, minimizing waste during application.
• High Element Count: 32 elements maximize mixing efficiency, making it ideal for a variety of adhesive chemistries.

Sulzer ME 08-32T Specifications

• Series: ME
• Model: ME 08-32T
• Mixer Type: Helix
• Connection Type: Bell
• System: Meter Mix Dispense Equipment
• Compatible With: Two-Component Products with Meter Mix Dispense (MMD) Equipment
• Number of Elements: 32
• Inner Diameter: 0.625 in / 15.9 mm
• Length: 11.299 in / 287 mm
• Waste Volume: 11.5 ml
• Outlet Tip: Stepped Tip
• Color: Blue
• Element Material: Polyacetal (POM)
• Housing Material: Polypropylene (PP)
