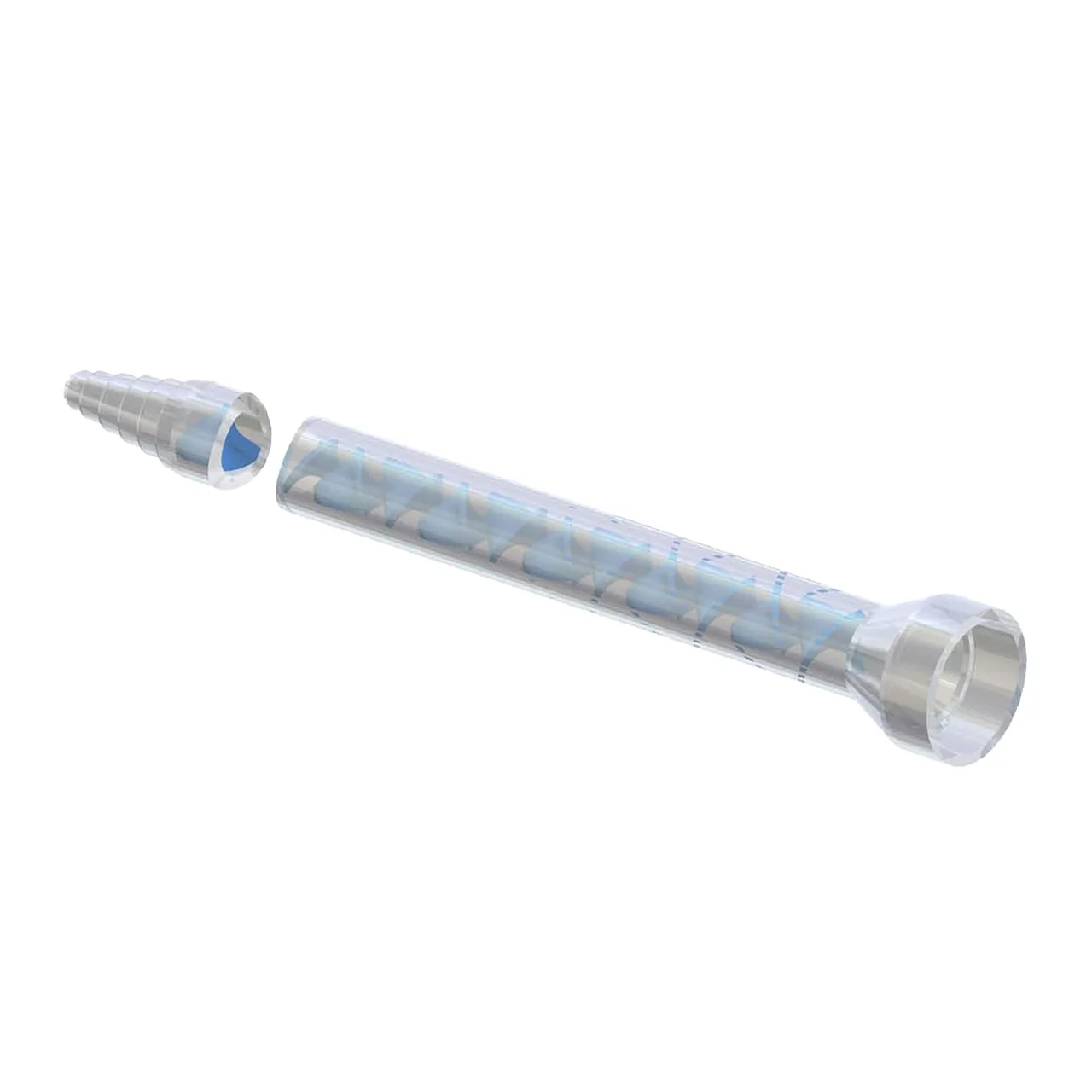

Sulzer ME 1312-1032D Static Mixing Nozzle for Meter Mix Dispense

The Sulzer ME 1312-1032D is a high-performance static mixing nozzle featuring a Helix mixer type and a Bell connection type, designed for use with Meter Mix Dispense (MMD) equipment. This nozzle is compatible with two-component products, supporting mix ratios of 1:1 and 2:1. With 44 elements and an inner diameter of 0.625 in (15.9 mm), it delivers reliable mixing performance. The nozzle length is 19.646 in (499 mm) and includes a threaded stepped tip outlet. Ideal for a variety of adhesive chemistries, including MMAs and epoxies, this static mixer nozzle is a must-have for efficient dispensing.

Benefits of ME 1312-1032D Mixing Nozzles

• Helix Mixer Design: Ensures thorough mixing of two-component products for optimal performance.
• Bell Connection Type: Provides secure attachment to MMD equipment, facilitating fast setup without tools.
• Large Number of Elements: With 44 elements, it offers superior mixing efficiency, suitable for a range of applications.
• Compatible with Multiple Ratios: Supports both 1:1 and 2:1 mix ratios, making it versatile for various adhesive mixing needs.
• Threaded Stepped Tip: Allows for precise dispensing, enhancing control during application.

Sulzer ME 1312-1032D Specifications

• Series: ME
• Model: ME 1312-1032D
• Mixer Type: Helix
• Connection Type: Bell
• System: Meter Mix Dispense Equipment
• Compatible With: Two-Component Products with Meter Mix Dispense (MMD) Equipment
• Number of Elements: 44
• Inner Diameter: 0.625 in / 15.9 mm
• Diameter: 0.669 in / 17 mm / 0.551 in / 14 mm
• Length: 19.646 in / 499 mm
• Waste Volume: 37.5 ml
• Outlet Tip: Threaded Stepped Tip
• Color: Blue
• Element Material: Polyacetal (POM)
• Housing Material: Polypropylene (PP)
