Infinity Bond EP H70E Epoxy Syringes Pre-Mixed and Frozen

Infinity Bond EP H70E is a two-component, thermally conductive, electrically insulating epoxy designed for chip bonding in microelectronic and optoelectronics applications.

Features & Applications

• Heat-sinking adhesive recommended for thermal management applications where good heat dissipation is necessary.
• Outstanding handling characteristics and long pot life at room temperature. No solvents added.
• This product can be screen printed, machine dispensed, stamped, or hand applied.

• Die-attach adhesive designed to be used in the 300C range to resist TC wire bonding operations.
• Excellent adhesion to ferrous and non-ferrous metals, lead-frame die paddle, glass, ceramic, kovar, and PCB.
• Can be cured very rapidly, excellent material to use for making fast circuit repairs; can be snap-cured for in-line semiconductor die-bonding.

Sizes Available

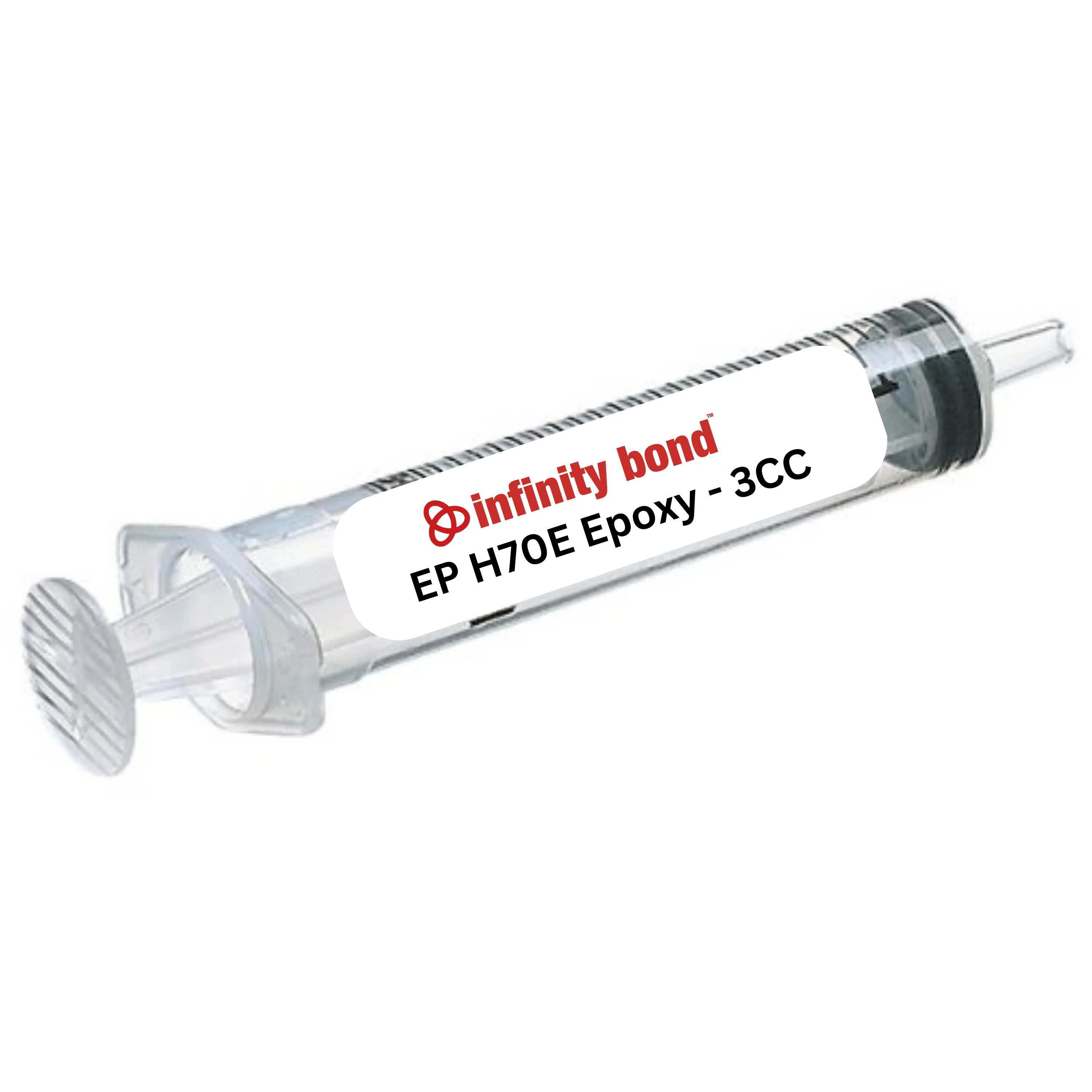

Pre-mixed syringes: 3cc, 5cc, 10cc, 30cc. Syringes are shipped on dry ice at -80°C.

Alternative to EPO-TEK® H70E

Infinity Bond EP H70E is a direct replacement for EPO-TEK® H70E epoxy adhesive. If you have questions about switching from EPO-TEK® H70E to Infinity Bond EP H70E, don't hesitate to contact us.

Specifications

Color	Grey
Specific Gravity	1.9
Hardness, Shore D	86
Lap shear strength to aluminum, psi	2000
Water Absorption	0.007
Thermal Conductivity, W/mK	1.0
